HVD3102A

HVD3102A is a 1KV, 25MHz HVD3000A series high voltage differential probe with auto zero disconnect. This probe provides high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments. The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.

• 14ns rise time, 1Mohm output termination
• Common mode voltage range ±1500V (DC + peak AC), 1000Vrms
• 1% gain accuracy
• High offset capability at both high and low attenuation
• AC and DC coupling
• ProBus active probe interface with automatic scaling
• Wide oscilloscope compatibility
• Operating temperature range from 0°C to 50°C

Contents

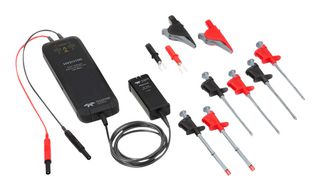

High voltage differential probe, Spade terminals x 2, Safety alligator clips x 2, Plunger alligator clips x 2, Plunger pincer clips x 2, Plunger hook clips x 2, Case, Foam, User manual.
