72-10510
Digital Oscilloscope, 2 Channel, 25 MHz, 250 MSPS, 25 kpts, 14 ns

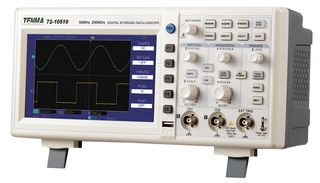

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTENMA
Manufacturer Part No72-10510
Order Code2283593
Also Known AsGTIN UPC EAN: 5051259025011
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerTENMA
Manufacturer Part No72-10510
Order Code2283593
Also Known AsGTIN UPC EAN: 5051259025011
Technical Datasheet
Product Range-
Scope Channels2 Channel
Bandwidth25MHz
Sampling Rate250MSPS
Display Memory Depth25 kpts
Calculated Rise Time14ns
Scope Display TypeWQVGA LCD Colour
Kit ContentsOne Probe Per Channel (1:1, 1:10 Switchable), Power Cord, USB Cable, PC Software CD
Manufacturer Warranty1 Year
Plug TypeEU, UK
SVHCNo SVHC (19-Jan-2021)
Product Overview
Digital storage oscilloscope with 7" TFT LCD display (400 x 240).
- CAT II 300V safety standards
- Automatic measurement of 28 waveform parameters
- Automatic waveform and status setup
- Automatic cursor tracing and measurement function
- Edge, pulse, video, alternate trigger modes
- USB, OTG interface and pass/fail test supported
- Unique waveform recording and replay function
- Multilingual menu displays and setup, wave, bitmap storage
- Supports plug and play USB storage device to communicate with computer
- 12-month limited warranty *view Terms & Conditions for details
Applications
Test & Measurement
Contents
Digital storage oscilloscope, Probex2 (1x,10x switchable), Power cord (100-240VAC, 50Hz/60Hz), USB cable, PC software CD, Manual.
Warnings
Not compatible with Windows 10
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
Product Range
-
Bandwidth
25MHz
Display Memory Depth
25 kpts
Scope Display Type
WQVGA LCD Colour
Manufacturer Warranty
1 Year
SVHC
No SVHC (19-Jan-2021)
Scope Channels
2 Channel
Sampling Rate
250MSPS
Calculated Rise Time
14ns
Kit Contents
One Probe Per Channel (1:1, 1:10 Switchable), Power Cord, USB Cable, PC Software CD
Plug Type
EU, UK
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:3A992.g
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):2.2
