TC 44 18 03

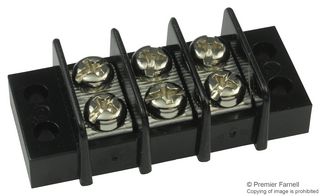

Panel Mount Barrier Terminal Block, 2 Row, 3 Ways, 21 AWG, 12 AWG, 9.5 mm, 20 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTHERMODATA COMPONENTS
Manufacturer Part NoTC 44 18 03
Order Code2769966
Product RangeTC 44
Technical Datasheet
2,466 In Stock
Need more?
2466 Delivery in 4-6 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price |
|---|---|
| 1+ | Rs.371.620 |
| 10+ | Rs.276.310 |
| 100+ | Rs.219.600 |
| 250+ | Rs.174.960 |
| 500+ | Rs.159.270 |
| 1000+ | Rs.143.580 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.371.62
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTHERMODATA COMPONENTS
Manufacturer Part NoTC 44 18 03
Order Code2769966
Product RangeTC 44
Technical Datasheet
No. of Rows2 Row
Product RangeTC 44
Alternatives for TC 44 18 03
1 Product Found
Product Overview
- Series TC 44 18 panel mount 2 row barrier terminal block
- PA66, UL94V-0 housing
- M3.5 steel nickel plated screws, copper alloy, tin plated terminals
- Temperature range from -40°C to +105°C
- Current rating is 20A, voltage rating is 300V
- AC 2000V/1minimum withstanding voltage
- 500Mohm / DC 500V insulation resistance
- 20mohm contact resistance
- 22-12AWG wire range, 0.8Nm torque
Technical Specifications
No. of Rows
2 Row
Product Range
TC 44
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.015
