Test Accessory, Power Switch, Voltech PM100, PM300 & PM3000A Power Analyzers

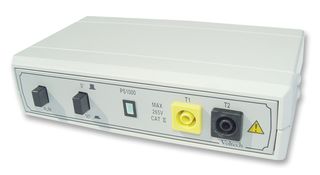

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
PS1000   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Power Switch

Voltech PM100, PM300 & PM3000A Power Analyzers


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

CAD Downloads


Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The PS1000 is a Solid-state Switch controls the turn-on of an AC supply to allow accurate measurement of the inrush current into an AC load. It is designed for use with Voltech power analysers such as the PM100, PM300 or PM3000A. A push-button switch on the PS1000 front panel allows the turn-on point of the AC supply to be selected between the zero-crossing or peak value of the AC voltage waveform. Trigger point accuracy for supply frequencies in the range from 40Hz to 440Hz is automatically maintained by a phase-locked loop in the unit. A fully isolated trigger output is provided on a rear-panel BNC connector, so that other equipment, such as a storage oscilloscope, can be triggered when the PS1000 turns the AC supply on.
  • Connects Directly into the Load Circuit via 4mm Safety Sockets on its Front Panel
  • Housed in a Fully Insulated, Impact Resistant ABS Case
  • Set the Trigger Point to 0° (zero crossing) or 90° (peak voltage), as Required
  • Set up the Power Analyser for Inrush Current Measurement
  • Energize the AC Supply
  • Press the RUN Button on the Front Panel


Test & Measurement

No Longer Manufactured
