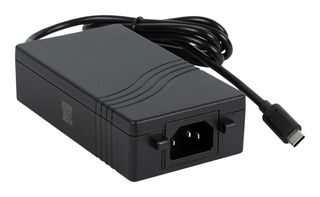

PGD140PS28

PGD140PS28 is a PGD140 series AC-DC power supply. The PGD140 series of external desktop AC-DC power supply conforms to the power delivery protocol with outputs with auto-selected based on the system’s charging requirement. Worldwide medical and ITE safety agency approvals, low leakage currents, compact Gallium-Nitride (GaN) based design, wide 80-264V AC input for universal use, energy efficiency level VI (level VII ready) and support for multiple fast charging protocols, makes the PGD140 ideal for a wide range of industrial and BF-rated medical applications. Applications include technology and instrumentation.

• Meets USB PD 3.1 & QC4.0+ fast charging protocol
• IP22 environmental rating
• Low earth leakage current, <0.15W standby power
• Class B conducted & radiated emissions
• 0 to +60°C operation, 3 year warranty, dimension is 121 x 65.8 x 32mm
• Output voltages (auto-selected by load): 5.0V/9.0V/12.0V/15.0V/20.0V/28.0V
• Output currents: 3.0A/3.0A/3.0A/3.0A/5.0A/5.0A
• Output power: 15.0W/26.0W/36.0W/45.0W/100.0W/140.0W
• Total regulation of ±5%
• Efficiency: 82.0%/86.8%/87.5%/88.0%/90.0%/92.0%
