3749/16
Ribbon Cable, Round Conductor, Unscreened, 16 Core, 30 AWG, 100 ft, 30.5 m

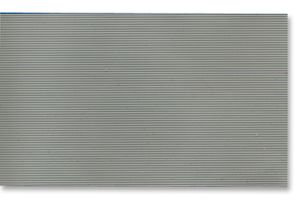

Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part No3749/16
Order Code2301995
Product Range3749 Series
Also Known As7000057296
Your Part Number
Technical Datasheet
4 In Stock
10 more incoming. You can reserve stock now
4 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.10,029.480 |
| 2+ | Rs.9,133.640 |
| 3+ | Rs.8,648.030 |
| 5+ | Rs.8,074.500 |
| 7+ | Rs.7,718.840 |
| 10+ | Rs.7,360.470 |
| 25+ | Rs.6,522.410 |
| 50+ | Rs.5,961.700 |
| 100+ | Rs.5,458.400 |
Price for:Reel of 1
Minimum: 1
Multiple: 1
Rs.10,029.48
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Manufacturer3M
Manufacturer Part No3749/16
Order Code2301995
Product Range3749 Series
Also Known As7000057296
Technical Datasheet
Cable ShieldingUnscreened
No. of Cores16Core
Wire Gauge30AWG
Conductor Area CSA-
Reel Length (Imperial)100ft
Reel Length (Metric)30.5m
Jacket ColourGrey
Cable Width10.16mm
No. of Max Strands x Strand SizeSolid
Pitch Spacing0.635mm
Voltage Rating50V
Conductor MaterialTinned Copper
Jacket MaterialTPE
Ribbon Cable TypeFlat Ribbon Cable
Product Range3749 Series
SVHCNo SVHC (15-Jan-2018)
Product Overview
The 3749 series unshielded round conductor Flat Cable with tinned solid copper conductor and a grey thermoplastic elastomer (TPE) insulator. The 30AWG solid conductors on 0.025-inch spacing allows for mass termination.
- CPR: Not Yet Qualified
- Close spacing permits higher signal density
- TPE insulation provides excellent transmission properties
- Zippable for branching or discrete termination
- 90Ω Impedance
- 16.5pF/ft Capacitance
- 0.13μH/ft Inductance
- 69% Velocity of propagation
Applications
Computers & Computer Peripherals
Notes
This is Non-Splice Free Cable. The entire cable length of one packaging unit is achieved by several cable sections without a continuous electrical & mechanical connection.
Technical Specifications
Cable Shielding
Unscreened
Wire Gauge
30AWG
Reel Length (Imperial)
100ft
Jacket Colour
Grey
No. of Max Strands x Strand Size
Solid
Voltage Rating
50V
Jacket Material
TPE
Product Range
3749 Series
No. of Cores
16Core
Conductor Area CSA
-
Reel Length (Metric)
30.5m
Cable Width
10.16mm
Pitch Spacing
0.635mm
Conductor Material
Tinned Copper
Ribbon Cable Type
Flat Ribbon Cable
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85441990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):3.1751
