677-2212-322F.

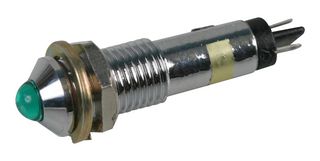

LED Panel Mount Indicator, Green, 6 VDC, 7.2 mm, 20 mA, 4.135 cd, IP66, NEMA 4X
Image is for illustrative purposes only. Please refer to product description.
175 In Stock
Need more?
175 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.1,101.560 |
| 50+ | Rs.785.150 |
| 100+ | Rs.707.380 |
| 500+ | Rs.644.260 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.11,015.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No677-2212-322F.
Order Code4163501
Technical Datasheet
LED Colour0
Operating Voltage6VDC
Mounting Hole Dia7.2mm
Forward Current If20mA
Luminous Intensity4.135cd
SVHCNo SVHC (21-Jan-2025)
Product Overview
677-2212-322F is a 677 series 7mm high intensity panel mount indicator. It is designed for a variety of applications such as main power indication, remote power indication, status indication, maintenance and warning indication, instrumentation.
- Recessed lens
- Green colour, 6VDC voltage rating
- 4135mcd typical intensity
- NEMA 4X (with gasket), IP66 (with gasket) rated
- Mounting hole size is 7.2mm
- Operating temperature range from -20°C to +75°C
- Electrical connection is solder terminals
- Chrome plated brass housing (internal position: polycarbonate housing)
- Nickel plated copper terminals, nickel plated iron lock washer, nickel plated brass nut
- 8.50mm panel thickness
Technical Specifications
LED Colour
0
Mounting Hole Dia
7.2mm
Luminous Intensity
4.135cd
Operating Voltage
6VDC
Forward Current If
20mA
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85318000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004191
