Lighting Transformer, 1:67, 1 x 20V, 1.34kV, 11 mA, 6 W, OCTA-PAC

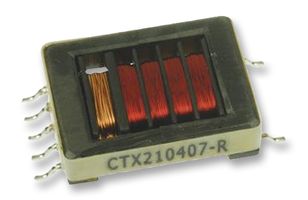

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON COILTRONICS
Manufacturer Part NoCTX210605-R
Order Code1612154
Product RangeOCTA-PAC
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerEATON COILTRONICS
Manufacturer Part NoCTX210605-R
Order Code1612154
Product RangeOCTA-PAC
Technical Datasheet
Turns Ratio1:67
Lighting Transformer Primary Voltages1 x 20V
Secondary Voltages1.34kV
Secondary Current Nom11mA
Secondary Power6W
Product RangeOCTA-PAC
SVHC1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP) (15-Jun-2015)
Product Overview
The CTX210605-R is a 6W/20V cold cathode fluorescent lamp Inverter Transformer with Ferrite core and 1 x 1.34kV secondary voltage, operates in Royer and other topologies. This CTX series transformer available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology and used in CCFL power supplies.
- 40 to 80kHz Frequency range
- 260°C Maximum for 10 seconds solder reflow temperature
Applications
Industrial, Power Management
Technical Specifications
Turns Ratio
1:67
Secondary Voltages
1.34kV
Secondary Power
6W
SVHC
1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP) (15-Jun-2015)
Lighting Transformer Primary Voltages
1 x 20V
Secondary Current Nom
11mA
Product Range
OCTA-PAC
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85049090
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP) (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004763
