FH12-50S-0.5SVA(54)

FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 50 Contacts, Receptacle, FH12 Series

FH12-50S-0.5SVA(54) - FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 50 Contacts, Receptacle, FH12 Series
FH12-50S-0.5SVA(54) - FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 50 Contacts, Receptacle, FH12 Series

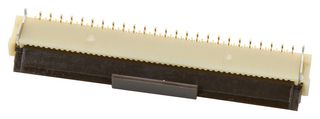

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
FH12-50S-0.5SVA(54)
Order Code:
2564808
Product Range
FH12 Series
Also Known As:
586-0805-8-54
See all Technical Docs

Product Overview

The FH12-50S-0.5SV(55) is a 50-position 1-row 0.5mm female FPC/FFC Receptacle with beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated metal fitting. The FH12 series socket/connector with vertical FPC-FFC insertion direction/actuator position/contact orientation and SMT vertical mounting type. The one-touch rotating ZIF mechanism is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12's one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts are offered with a reinforced actuator that provides an extra measure of security against actuator breakage.
  • Rotating one-touch ZIF mechanism
  • Clear tactile click
  • Supports high density mounting
  • Reinforced actuator
  • 0.5A Rated current
  • 50VAC/DC Rated voltage
  • 50mR Maximum contact resistance
  • 500MR Minimum insulation resistance
  • 150VAC for one minute Withstanding voltage
  • 20 Mating/unmating cycles

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
0.5mm

:
50Contacts

:
Receptacle

:
FH12 Series

:
Surface Mount

:
-

:
1 Row

:
Gold Plated Contacts

:
Phosphor Bronze

:
0.3mm

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Also Known As

586-0805-8-54

Associated Products

Compare Selected
Packaging type Cut Tape

Available for back order

More stock available to supplier lead times which is approximately 19/10/20

Notify me when back in stock

Rs.363.57

Pricing is unavailable. Please contact customer services.

Price for:
Each (Supplied on Cut Tape)
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.363.57
