XF-1026-FAR
Thermocouple, ANSI Mineral Insulated, 1.5mm x 150mm Probe, K, -40 °C, 1100 °C, Stainless Steel
- Manufacturer:
- LABFACILITY LABFACILITY
- Manufacturer Part No:
- XF-1026-FAR
- Order Code:
- 2772028
- Also Known As:
- MA-ISK-S15-150-P1-1.0-C7-T-ANSI
- Technical Datasheet:
- XF-1026-FAR Datasheet
Product Overview

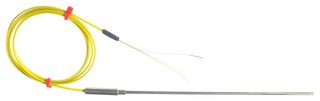

The XF-1026-FAR from Labfacility is an ANSI mineral insulated thermocouples with 1m PFA PTFE insulated flat pair cable and tails. The sensor is Type K (nickel chromium/nickel aluminium). It has construction of flexible mineral insulated probe with stainless steel sheath, plain pot seal and 1metre extension cable. The thermocouple has single element, junction insulated from sheath (offers protection against spurious electrical signals). It has good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc.
- Type K with 1metre lead and tails, 310 stainless steel sheath
- Mineral insulated thermocouple to ANSI MC96.1 standard
- Highly flexible, sheath can be bent/formed to suit many applications and processes
- Insulated hot junction, plain pot seal (200°C)
- 1metre 7/0.2mm PFA PTFE insulated flat pair cable, colour coded in accordance with ANSI MC96.1
- Probe diameter is 1.5m, probe length is 150mm
- Cable jacket colour is yellow
- Yellow/white positive/negative tails
- Probe temperature ranges from (Type K) -40°C to +1100°C
Applications
Industrial, Sensing & Instrumentation
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- K
- :
- -40°C
- :
- 1100°C
- :
- Stainless Steel
- :
- 40"
- :
- 1m
- :
- 6"
- :
- 150mm
- :
- 0.059"
- :
- 1.5mm
- :
- -
Technical Documents (4)
Also Known As
MA-ISK-S15-150-P1-1.0-C7-T-ANSI
16 In stock Need more?
×
