MUBW30-12A6K
IGBT Module, Three Phase CIB [Converter + Inverter + Brake], 30 A, 3 V, 130 W, 125 °C, Module

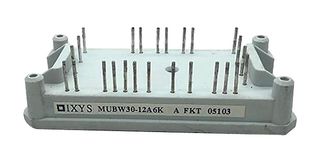

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoMUBW30-12A6K
Order Code3930428
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoMUBW30-12A6K
Order Code3930428
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
IGBT ConfigurationThree Phase CIB [Converter + Inverter + Brake]
Continuous Collector Current30A
Collector Emitter Saturation Voltage3V
Power Dissipation130W
Operating Temperature Max125°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyNPT IGBT [Standard]
Transistor MountingPanel
Product RangeTUK SGACK902S Keystone Coupler
Product Overview
(CBI 1) Converter - Brake - Inverter module suitable for use with AC motor drives with input from single or three phase grid, three phase synchronous or asynchronous motor and electric braking operation applications.
- High level of integration
- Inverter with NPT IGBTs
- Low saturation voltage
- Epitaxial free wheeling diodes with hiperfast and soft reverse recovery
- Industry standard package with insulated copper base plate and soldering pins for PCB mounting
- Temperature sense included
Technical Specifications
IGBT Configuration
Three Phase CIB [Converter + Inverter + Brake]
Collector Emitter Saturation Voltage
3V
Operating Temperature Max
125°C
IGBT Termination
Press Fit
IGBT Technology
NPT IGBT [Standard]
Product Range
TUK SGACK902S Keystone Coupler
Continuous Collector Current
30A
Power Dissipation
130W
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
Boric acid (14-Jun-2023)
