KV30

DIN Audio / Video Connector, 3 Contacts, Jack, Cable Mount, Solder, Silver Plated Contacts

LUMBERG KV30
LUMBERG KV30

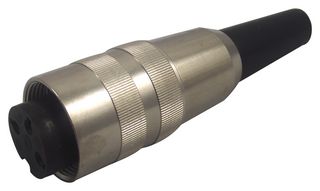

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
LUMBERG LUMBERG
Manufacturer Part No:
KV30
Order Code:
1321485
Product Range
KV Series
Technical Datasheet:
KV30   Datasheet
See all Technical Docs

Product Range Selector (KV Series)

See all from this product range

Product Overview

The KV30 from Lumberg is a 3 pole socket circular connector with threaded joint. This is a straight version socket with ground contact, solder terminals and has a long bend protection (TPE). The KV30 complies with IEC 61076-2-106.
  • Rated current of 5A
  • Rated voltage of 250VAC
  • Wire cross section area of 0.75mm²
  • Body material is polyamide GF
  • Operating temperature range from -40°C to 85°C
  • CuZn, silver and flash gold plated contact bush
  • PC sleeves, CuZn, pre-nickel and tin plated grounding spring
  • CuZn and nickel plated housing and knurled nut
  • IP40 protection
  • Mating with plugs SFV, SGR, SGV, SV, WSV

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
3Contacts

:
Jack

:
Cable Mount

:
Solder

:
Silver Plated Contacts

:
Metal Body

:
KV Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

348 In stock Need more?

348 available for 4 - 6 business days delivery

Rs.872.80

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.872.80
