| Quantity | Price |
|---|---|
| 1+ | Rs.1,069.470 |
| 10+ | Rs.912.630 |
| 100+ | Rs.779.930 |
| 250+ | Rs.742.370 |
| 500+ | Rs.704.810 |
| 1000+ | Rs.667.250 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,069.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLUMBERG
Manufacturer Part NoKV 50
Order Code1321487
Product RangeKV
Technical Datasheet
Connector TypeStandard Circular Connector
GenderJack
Product RangeKV
Circular Connector Shell StyleCable Mount Receptacle
Connector MountingCable Mount
No. of Contacts5Contacts
Contact TerminationSolder
Contact PlatingSilver Plated Contacts
Circular Connector Contact TypeSolder Socket
Coupling StyleThreaded
Connector Body MaterialMetal Body
Connector Body Plating-
Contact MaterialBrass
Contact PlatingGold
IP RatingIP40, IP68
SVHCLead (25-Jun-2025)
Product Overview

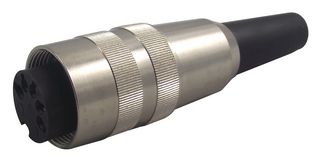

The KV50 is a 5-pole DIN Audio/Video Connector, straight version with threaded joint, ground contact and solder terminals. Polyamide insulating body, gold-plated contacts with long TPE bend protection. The KV socket is suitable for use with SFV, SGR, SGV, SV and WSV plugs. Designed according to the IEC 61076-2-106 standards.
- IP40 Protection rating
- <lt/>5.0N Insertion force/contact
- <gt/>1.2N Withdrawal force/contact
- ≤5mΩ Contact resistance
Applications
Industrial, Audio, Imaging, Video & Vision
Technical Specifications
Connector Type
Standard Circular Connector
Product Range
KV
Connector Mounting
Cable Mount
Contact Termination
Solder
Circular Connector Contact Type
Solder Socket
Connector Body Material
Metal Body
Contact Material
Brass
IP Rating
IP40, IP68
Gender
Jack
Circular Connector Shell Style
Cable Mount Receptacle
No. of Contacts
5Contacts
Contact Plating
Silver Plated Contacts
Coupling Style
Threaded
Connector Body Plating
-
Contact Plating
Gold
SVHC
Lead (25-Jun-2025)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02402
