209142-0180..

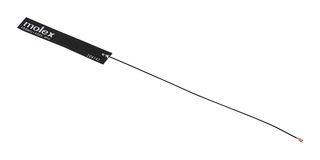

698~4000MHZ FLEXIBLE ANTENNA 180MM CABLE
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No209142-0180..
Order Code3225219
Your Part Number
Technical Datasheet
10 In Stock
Need more?
10 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.316.750 |
| 10+ | Rs.234.520 |
| 25+ | Rs.212.100 |
| 50+ | Rs.199.490 |
| 100+ | Rs.186.870 |
| 500+ | Rs.181.270 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.316.75
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
- Linear polarisation
- Omnidirectional
- Adhesive mounting
- Compatible with U.FL / I-PEX MHF Connectors
- Frequency: 698MHz to 960MHz (Band 1), 1710MHz to 2690MHz and 3300MHz to 3800MHz
- Peak Gain: 1.2dbi @ 698MHz, 2.7dBi @ 3300MHz, 5.2dBi @ 1710MHz
- Dimensions: 85x14.5x0.1mm
- Cable length: 180mm
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85441990
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
