FSB50250B

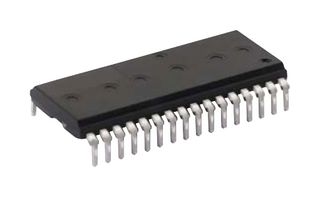

Advanced Motion SPM 5 module in SPM5P−023 package provides a fully featured, high performance inverter output stage for AC Induction, BLDC and PMSM motors such as refrigerators, fans and pumps. This module integrates optimized gate drive of the built−in MOSFETs (FRFETtechnology) to minimize EMI and losses, while also providing multiple on-module protection features including undervoltage lockouts and thermal monitoring. The built-in high speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high voltage, high current drive signals required to properly drive the module’s internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms. Typical applications include 3-phase inverter driver for small power AC motor drives.

• UL certified no. E209204 (UL1557)
• Optimized for over 10KHz switching frequency
• 500V FRFET MOSFET 3−phase inverter with gate drivers and protection
• Built-in bootstrap diodes simplify PCB layout
• Separate open−source pins from low−side MOSFETs for 3 phase current sensing
• Active-HIGH interface, works with 3.3 / 5V logic, schmitt−trigger input
• Optimized for low electromagnetic interference
• HVIC temperature sensing built−in for temperature monitoring
• HVIC for gate driving and undervoltage protection
• Isolation rating of 1500Vrms / min
