UPF50B500RV
Through Hole Resistor, 500 ohm, UPF Series, 500 mW, ± 0.1%, Axial Leaded, 300 V

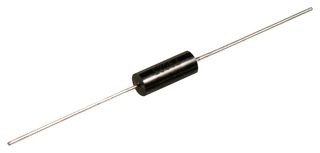

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCGS - TE CONNECTIVITY
Manufacturer Part NoUPF50B500RV
Order Code2332208
Product RangeUPF Series
Also Known As1-2176163-5, UPF50 0.1% 5PPM 500R
Your Part Number
Technical Datasheet
547 In Stock
200 more incoming. You can reserve stock now
547 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.476.580 |
| 5+ | Rs.420.060 |
| 10+ | Rs.363.530 |
| 20+ | Rs.342.040 |
| 40+ | Rs.320.550 |
| 100+ | Rs.299.060 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.476.58
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerCGS - TE CONNECTIVITY
Manufacturer Part NoUPF50B500RV
Order Code2332208
Product RangeUPF Series
Also Known As1-2176163-5, UPF50 0.1% 5PPM 500R
Technical Datasheet
Resistance500ohm
Product RangeUPF Series
Power Rating500mW
Resistance Tolerance± 0.1%
Resistor Case / PackageAxial Leaded
Voltage Rating300V
Resistor TechnologyMetal Film
Temperature Coefficient± 5ppm/°C
Resistor TypeHigh Precision
Product Diameter4mm
Product Length10.2mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The UPF50B500RV is a 500Ω 500mW through-hole mounting high precision metal film Leaded Resistor with tinned iron cap terminals and tinned annealed copper lead wire. The UPF series resistor features very tight tolerance down to ±0.02% and extremely low TCR down to ±5PPM/°C.
- Excellent stability
- No deterioration of coatings and markings resistance to solvent
- -55 to 125°C Operating temperature range
Technical Specifications
Resistance
500ohm
Power Rating
500mW
Resistor Case / Package
Axial Leaded
Resistor Technology
Metal Film
Resistor Type
High Precision
Product Length
10.2mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
UPF Series
Resistance Tolerance
± 0.1%
Voltage Rating
300V
Temperature Coefficient
± 5ppm/°C
Product Diameter
4mm
Product Width
-
Operating Temperature Max
125°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85332919
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
