CCS050M12CM2
Silicon Carbide MOSFET, 6 Pack, Half Bridge, N Channel, 87 A, 1.2 kV, 0.025 ohm, Module

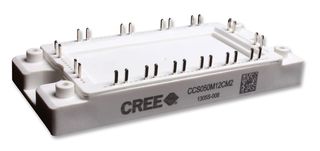

Image is for illustrative purposes only. Please refer to product description.
138 In Stock
Need more?
138 Delivery in 4-6 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price |
|---|---|
| 1+ | Rs.44,844.140 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.44,844.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWOLFSPEED
Manufacturer Part NoCCS050M12CM2
Order Code2317992
Technical Datasheet
MOSFET Module ConfigurationHalf Bridge
Channel TypeN Channel
Continuous Drain Current Id87A
Drain Source Voltage Vds1.2kV
Drain Source On State Resistance0.025ohm
Transistor Case StyleModule
No. of Pins20Pins
Rds(on) Test Voltage20V
Gate Source Threshold Voltage Max2.3V
Power Dissipation337W
Operating Temperature Max150°C
Product Range-
SVHCNo SVHC (17-Dec-2014)
Product Overview
The CCS050M12CM2 is a 3-phase silicon Carbide Module with zero turn-off tail current, high frequency operation, enables compact and lightweight system, high efficiency operation. Suitable for Z-FET™ MOSFET and Z-Rec™ diode.
- Ultra low loss
- Zero reverse recovery current
- Ease of transistor gate control
- Reduced cooling requirements
- 250A Pulsed drain current
- 150°C Junction temperature
Applications
Power Management, Motor Drive & Control, Alternative Energy, Medical
