3-6318491-6
Mezzanine Connector, Free Height, Header, 0.5 mm, 2 Rows, 220 Contacts, Surface Mount, Copper Alloy

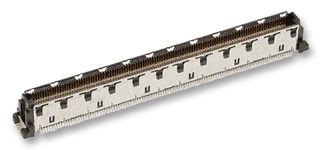

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 3-6318491-6Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1629997 |
| Product Range | FSI |
| Your Part Number | |
| Technical Datasheet |
4,130 In Stock
Need more?
4,130 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,454.150 |
| 10+ | Rs.2,098.290 |
| 25+ | Rs.1,978.690 |
| 100+ | Rs.1,859.090 |
| 250+ | Rs.1,774.410 |
| 500+ | Rs.1,680.500 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,454.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 3-6318491-6Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1629997 |
| Product Range | FSI |
| Technical Datasheet | |
| Mezzanine Connector Type | Header |
| Pitch Spacing | 0.5mm |
| No. of Rows | 2Rows |
| No. of Contacts | 220Contacts |
| Connector Mounting | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | FSI |
| Contact Termination Type | Surface Mount |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 3-6318491-6 is a 220-way 2-row 0.5mm SMT FH Stacking Plug, 8mm stack height, copper alloy contacts with gold plating, high temperature thermoplastic housing and black colour. 0.5mm free height is a two-piece connector system designed for parallel board-to-board stacking applications. The contact system is identical to our popular 0.6mm FH product. The 0.5mm FH product has been chosen by the PICMG COM Express working group as the interface between embedded modules and carrier cards.
- 10000MΩ Insulation resistance
- 200V Dielectric withstanding voltage
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
| Mezzanine Connector Type | Header |
|---|---|
| No. of Rows | 2Rows |
| Connector Mounting | Surface Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 0.5mm |
|---|---|
| No. of Contacts | 220Contacts |
| Contact Material | Copper Alloy |
| Product Range | FSI |
| SVHC | No SVHC (04-Feb-2026) |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004082 |
