31-5431

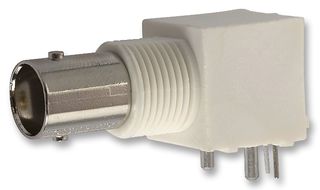

RF / Coaxial Connector, BNC Coaxial, Right Angle Bulkhead Jack, Solder, 50 ohm
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.420.880 |
| 10+ | Rs.360.090 |
| 25+ | Rs.338.460 |
| 50+ | Rs.322.990 |
| 100+ | Rs.308.260 |
| 250+ | Rs.289.890 |
| 500+ | Rs.280.220 |
Product Information
Product Overview
The 31-5431 is a RF Connector, BNC series, BNC right angle PCB Jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of zinc die-cast with nickel-plated finish and polypropylene insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
- Standard polarity
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
- -55 to 85°C Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Technical Specifications
BNC Coaxial
Solder
RG58, RG59, RG179, RG316
Gold Plated Contacts
PCB Mount
Lead (14-Jun-2023)
Right Angle Bulkhead Jack
50ohm
Phosphor Bronze
4GHz
-
Technical Docs (2)
Alternatives for 31-5431
6 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
