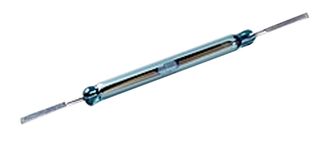

Element14’s reed switches are electromagnetic devices that operate when exposed to a magnetic field. These switches are typically used for non-contact detection and are available in both normally open and normally closed versions.

Reed switches are highly reliable and compact, making them ideal for use in security systems, automotive applications, and proximity sensors. They offer a simple and effective way to detect the presence or absence of a magnetic field.

Applications:

Security Systems: Detecting the opening of doors and windows.
Automotive: Position sensors for automotive doors and windows.
Industrial Automation: Detecting the presence of objects on conveyor belts.

Manufacturer Part No	Order Code	Manufacturer / Description	Price For	Price	Sensing Range Max	Product Range	Contact Configuration	Sensing Distance Max	Switch Mounting	Sensor Mounting	Contact Current Max	Supply Current	Operating Temperature Min	Switching Voltage Max	Switching Power Max	Operating Temperature Max	Contact Resistance Max	Operate AT Min	Operate AT Max

CT05-3050-G1	1081694 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch CT05 Series SPST-NO Surface Mount 500 mA 140 VDC 5 W	Each (Supplied on Cut Tape) Cut Tape	2000+Rs.403.580 4000+Rs.380.920 6000+Rs.375.150	-	CT05 Series	SPST-NO	-	Surface Mount	-	500mA	-	-	140VDC	5W	-	0.16ohm	30AT	50AT
MDSR-10-8-10	4209299 Data Sheet RoHS	LITTELFUSE Reed Switch Subminiature MDSR-10 Series SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+Rs.123.360	-	MDSR-10 Series	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.12ohm	8AT	10AT
MRPR-20-17-23	4209301 Data Sheet RoHS	LITTELFUSE Reed Switch MRPR-20 Series SPST-NO Through Hole 1.5 A 250 VDC 50 W	Each	1+Rs.331.260 10+Rs.279.560 25+Rs.262.880	-	MRPR-20 Series	SPST-NO	-	Through Hole	-	1.5A	-	-	250VDC	50W	-	0.1ohm	17AT	23AT
CT10-1530-G1	1081696 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch CT10 Series SPST-NO Surface Mount 500 mA 200 VDC 10 W	Each (Supplied on Cut Tape) Cut Tape	2000+Rs.93.640 4000+Rs.88.750 6000+Rs.84.810	-	CT10 Series	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	10W	-	0.2ohm	15AT	30AT
DRS-DTH-50-80	4332349 Data Sheet RoHS	LITTELFUSE Reed Switch DRS-DTH Series SPDT-CO Through Hole 3 A 500 VDC 30 W	Each	1+Rs.1,652.980 5+Rs.1,468.780 10+Rs.1,284.570 20+Rs.1,258.880 50+Rs.1,233.190	-	DRS-DTH Series	SPDT-CO	-	Through Hole	-	3A	-	-	500VDC	30W	-	0.125ohm	50AT	80AT
MDRR-DT-15-30-F	1653421 Data Sheet RoHS	LITTELFUSE Reed Switch MDRR-DT Series SPDT Through Hole 250 mA 175 VDC 5 W	Each	1+Rs.527.680 5+Rs.485.480 10+Rs.443.270 20+Rs.427.700 50+Rs.412.120	-	MDRR-DT Series	SPDT	-	Through Hole	-	250mA	-	-	175VDC	5W	-	0.1ohm	15AT	30AT
GC3817 30/50	1899423 Data Sheet RoHS	COMUS REED SWITCH SPST-NO 3A 400V	Each	1+Rs.250.260 10+Rs.216.240 25+Rs.211.640 50+Rs.210.200 100+Rs.208.750	-	-	-	-	-	-	3A	-	-	400V	60W	-	0.1ohm	-	50AT
2502-2722-020	2409190 Data Sheet RoHS	COMUS Reed Switch SPST-NO Through Hole 1 A 230 V 12 VA	Each	1+Rs.164.390 10+Rs.161.110 25+Rs.157.820 50+Rs.154.530 100+Rs.151.240	-	-	SPST-NO	-	Through Hole	-	1A	-	-	230V	12VA	-	0.1ohm	-	-
MDSM-10R-20-25	2882652 Data Sheet RoHS	LITTELFUSE REED SWITCH SPST-NO 0.5A 200V SMD	Each (Supplied on Cut Tape) Cut Tape	1+Rs.158.770 25+Rs.127.690 50+Rs.121.100 100+Rs.115.450 250+Rs.107.920 More Pricing...	-	MDSM-10 Series	-	-	Surface Mount	-	500mA	-	-	200VDC	-	-	0.12ohm	-	-
GC1917 80/120	2292953 Data Sheet RoHS	COMUS Reed Switch GC1917 Series SPDT Through Hole 1 A 400 V 60 VA	Each	1+Rs.1,064.780 5+Rs.920.040 10+Rs.900.450 20+Rs.894.320 50+Rs.888.180	-	GC1917 Series	SPDT	-	Through Hole	-	1A	-	-	400V	60W	-	0.1ohm	80AT	120AT
KSK-1A80-1020	1079470 Data Sheet RoHS	STANDEXMEDER Reed Switch KSK-1A80 Series SPST-NO 500 mA 170 V 10 W	Each	1+Rs.164.550 10+Rs.151.190 25+Rs.141.170 50+Rs.138.320 100+Rs.130.010	-	KSK-1A80 Series	SPST-NO	-	-	-	500mA	-	-	170V	10W	-	0.25ohm	10AT	20AT
CT05-1535-G1	1608059 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch CT05 Series SPST-NO Surface Mount 500 mA 140 VDC 5 W	Each (Supplied on Cut Tape) Cut Tape	1+Rs.646.160	-	CT05 Series	SPST-NO	-	Surface Mount	-	500mA	-	-	140VDC	5W	-	0.16ohm	15AT	35AT
PPS24	732011 Data Sheet RoHS	COMUS / ASSEMTECH Reed Switch SPST-NO Through Hole 100 mA 24 V 1 VA	Each	1+Rs.167.090 10+Rs.157.910 25+Rs.150.490 50+Rs.148.860 100+Rs.147.230	-	-	SPST-NO	-	Through Hole	-	100mA	-	-	24V	1VA	-	0.2ohm	-	-
MK23-35-B-2	2453614 Data Sheet RoHS	STANDEXMEDER Reed Switch MK23 Series SPST-NO Surface Mount 1 A 200 V 20 W	Each (Supplied on Cut Tape) Cut Tape	1+Rs.261.030 10+Rs.132.690 25+Rs.115.990 50+Rs.112.630 100+Rs.103.530	-	MK23 Series	SPST-NO	-	Surface Mount	-	1A	-	-	200VDC	20W	-	0.15ohm	-	-
RI-03A	2409213 Data Sheet RoHS	COMUS Reed Switch RI-03 Series SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+Rs.89.700 10+Rs.87.910 25+Rs.86.120 50+Rs.84.320 100+Rs.82.530 More Pricing...	-	RI-03 Series	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.12ohm	18AT	32AT
2202-1513-060	2409186 Data Sheet RoHS	COMUS Reed Switch SPST-NO Through Hole 3 A 1.5 kV 120 W	Each	1+Rs.714.940 5+Rs.689.810 10+Rs.664.680 20+Rs.639.540 50+Rs.579.210	-	-	SPST-NO	-	Through Hole	-	3A	-	-	1.5kV	120W	-	0.1ohm	-	-
CT10-2540-G1	2982769 Data Sheet RoHS	COTO TECHNOLOGY REED SWITCH SPST 0.5A 200V GULL WING	Each (Supplied on Cut Tape) Cut Tape	1+Rs.130.730 10+Rs.113.740 25+Rs.106.190 50+Rs.101.470 100+Rs.96.470 More Pricing...	-	-	SPST-NO	-	-	-	500mA	-	-	200VDC	10W	-	0.2ohm	-	-
CT10-1540-G1	2982768 Data Sheet RoHS	COTO TECHNOLOGY REED RELAY SPST 0.5A 200VDC SMD	Each (Supplied on Cut Tape) Cut Tape	1+Rs.129.790 10+Rs.112.800 25+Rs.105.250 50+Rs.100.530 100+Rs.95.520 More Pricing...	-	-	SPST-NO	-	-	-	500mA	-	-	200VDC	10W	-	0.2ohm	-	-
59170-1-S-00-D	2774139 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 7.5 mm SMD 500 mA -40°C to 125°C 59170 Series	Each (Supplied on Cut Tape) Cut Tape	1+Rs.108.890	6.5mm	59170 Series	SPST-NO	6.5mm	Surface Mount	SMD	500mA	500mA	-40°C	200VDC	10W	125°C	0.1ohm	10AT	15AT
KSK-GR560-1015	2781571 Data Sheet RoHS	STANDEXMEDER Reed Switch GR560 Series SPST-NO Through Hole 1 A 200 V 10 W	Each	1+Rs.72.310 50+Rs.66.440 100+Rs.62.030 250+Rs.60.780	-	GR560 Series	SPST-NO	-	Through Hole	-	1A	-	-	200VDC	10W	-	0.1ohm	-	-
MISM-7R-6-10	3665623 Data Sheet RoHS	LITTELFUSE REED SW SPST 6AT-10AT 0.25A 170VDC	Each (Supplied on Cut Tape) Cut Tape	1+Rs.291.340 25+Rs.232.530 50+Rs.221.920 100+Rs.210.350	-	MISM-7 Series	-	-	-	-	-	-	-	-	10W	-	150mohm	6AT	-
SEN0387	3769871 Data Sheet RoHS	DFROBOT Reed Switch SPST-NO SPST-NO SPST-NC Cable Mount 50 mA 1 W	Each	1+Rs.464.000	-	-	SPST-NO, SPST-NO, SPST-NC	-	Cable Mount	-	50mA	-	-	-	1VA	-	-	-	-
MDSR-7-10-25	4332362 Data Sheet RoHS	LITTELFUSE Reed Switch MDSR-7 Series SPST-NO Through Hole 800 mA 200 VDC 10 W	Each	1+Rs.72.510	-	MDSR-7 Series	SPST-NO	-	Through Hole	-	800mA	-	-	200VDC	10W	-	0.1ohm	10AT	25AT
RI-46A	2409216 Data Sheet RoHS	COMUS Reed Switch RI-46 Series SPST-NO Surface Mount 500 mA 200 VDC 30 W	Each	1+Rs.166.070 10+Rs.161.510 25+Rs.156.940 50+Rs.152.640 100+Rs.150.580 More Pricing...	-	RI-46 Series	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	30W	-	0.09ohm	15AT	28AT
GR560-1520	2453574 Data Sheet RoHS	STANDEXMEDER Reed Switch GP560 Series SPST-NO Through Hole 1 A 125 VAC 10 VA	Each (Supplied on Cut Tape) Cut Tape	10+Rs.64.320 50+Rs.57.130 100+Rs.54.030 250+Rs.51.700	-	GP560 Series	SPST-NO	-	Through Hole	-	1A	-	-	125VAC	10W	-	0.1ohm	-	-
