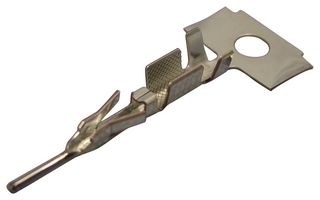

Contact, DF1B Series, Pin, Crimp, 24 AWG, Tin Plated Contacts


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Product Range
DF1B Series
Also Known As:
Technical Datasheet:
DF1B-2428PCF   Datasheet
See all Technical Docs

Product Range Selector (DF1B Series)

See all from this product range

Product Overview

The DF1B series 2.5mm Connector for discrete wire connection. This series connector is a new type to insert the ID contacts in the case. Using this method, the following merits can be gained. By using the ID contact and crimping contact together, different current capacity cables can be mixed in one case. After connection, the contact can be replaced in excellent maintainability. Because the insulation displacement area is protected by the case, high reliability can be assured. Since the insulation displacement process can be performed only by replacing the applicator of the existing crimping machine, no expensive machine for insulation displacement is required. The high profile header is also available, corresponding to the board potting process (sealed with resin) as water-proof measures. The single row and double row contacts are aligned for board-to-cable and in-line series respectively, while standard tin and gold plating products are available.
  • Potting header
  • Straight and right-angle connector orientation
  • 250VAC Voltage rating
  • 30, 50 and 100 Mating/unmating cycles
  • Crimping and IDC Wire termination method




Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

DF1B Series




Tin Plated Contacts

Hirose DF1B Series 2.5mm Pitch Plug Connectors


Phosphor Copper

Find similar products Choose and modify the attributes above to find similar products.
