TLD609812BEVALTOBO1
Evaluation Board, TLD6098-1EP, 8V to 27V in, 50V out, 1A, Boost (Step Up), Analogue, Digital

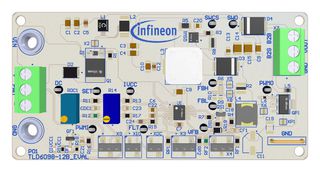

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLD609812BEVALTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4410898 |
| Also Known As | SP005902850 |
| Your Part Number |
1 In Stock
Need more?
1 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.13,917.000 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.13,917.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLD609812BEVALTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4410898 |
| Also Known As | SP005902850 |
| Device Topology | Boost |
| No. of Outputs | 1Outputs |
| Output Current | 1A |
| Output Voltage | 48.6V |
| Input Voltage Min | 8V |
| Input Voltage Max | 27V |
| Core Chip | TLD6098-1EP |
| Dimming Control Type | PWM |
| Kit Contents | Evaluation Board TLD6098-1EP |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
TLD609812BEVALTOBO1 is a PCB board designed to supply high-power LED with TLD6098-1EP in boost topologies. It serves boost to ground and boost to battery configurations, depending on the load connection at the terminal X7. In both configurations, the board can deliver up to 25W. Auxiliary circuits are present and enabled to protect the DC-DC and the load during the short to ground failure. Suitable for automotive LED lighting (LED driver) and voltage pre-regulator applications.
- Built-in diagnosis and protection features
- Pulse width modulator to implement a dimming function with reduced colour shifting
- Coded faults to easily detect the root cause of load failures
- Voltage loop availability to implement constant output voltage power supply
- Boost to ground and boost to battery available on the same board
- Easy to set-up
Technical Specifications
| Device Topology | Boost |
|---|---|
| Output Current | 1A |
| Input Voltage Min | 8V |
| Core Chip | TLD6098-1EP |
| Kit Contents | Evaluation Board TLD6098-1EP |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 1Outputs |
|---|---|
| Output Voltage | 48.6V |
| Input Voltage Max | 27V |
| Dimming Control Type | PWM |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .18 |
