2170002
Coaxial Cable, RG178, 30 AWG, 0.055 mm², 50 ohm, 164 ft, 50 m

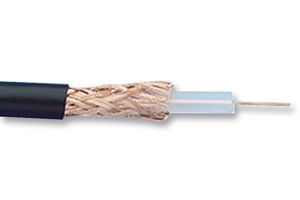

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerLAPP
Manufacturer Part No2170002
Order Code1285813
Technical Datasheet
Coaxial Cable TypeRG178
Conductor Area CSA0.055mm²
Conductor MaterialCopper
External Diameter1.9mm
Impedance50ohm
Jacket ColourBrown
Jacket MaterialFEP
No. of Max Strands x Strand Size7 x 0.1mm
Product Range-
Reel Length (Imperial)164ft
Reel Length (Metric)50m
Wire Gauge30AWG
Alternatives for 2170002
2 Products Found
Product Overview
The 2170002 is a brown RG178B/U Coaxial Cable with polyethylene dielectric and FEP outdoor cable sheath. The coaxial cable allows distortion-free and low-attenuation transmission of signals with a high bandwidth and high frequencies. Suitable for radio and computer system, as well as all applications related to commercial radio-frequency technology and electronics.
- CPR: Not Yet Qualified
- 50Ω Impedance
- 70% Propagation rate
- 2kV Test voltage
- Heat- and cold-resistant
- Flame-retardant
Applications
RF Communications, Computers & Computer Peripherals
Technical Specifications
Coaxial Cable Type
RG178
Conductor Material
Copper
Impedance
50ohm
Jacket Material
FEP
Product Range
-
Reel Length (Metric)
50m
Conductor Area CSA
0.055mm²
External Diameter
1.9mm
Jacket Colour
Brown
No. of Max Strands x Strand Size
7 x 0.1mm
Reel Length (Imperial)
164ft
Wire Gauge
30AWG
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85441990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):2.45
