02066.2103-02

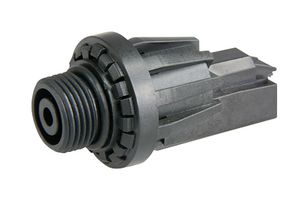

Pressure Transmitter, G3/8 Male, 0 bar, 4.5 bar, G3/8, 4 Pin Male Connector
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMARQUARDT
Manufacturer Part No02066.2103-02Copy
Manufacturer Standard Lead Time16 weeks
Order Code2836015
Product Range2066 Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,726.820 |
| 5+ | Rs.2,642.760 |
| 10+ | Rs.2,554.430 |
| 20+ | Rs.2,515.350 |
| 50+ | Rs.2,430.910 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,726.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMARQUARDT
Manufacturer Part No02066.2103-02Copy
Manufacturer Standard Lead Time16 weeks
Order Code2836015
Product Range2066 Series
Pressure Type-
Sensor Output TypeAnalogue
Pressure Port TypeG3/8 Male
Operating Pressure Min0bar
Voltage Rating5VDC
Operating Pressure Max4.5bar
Port StyleThreaded
Pressure Port SizeG3/8
Supply Current12mA
Transducer Connection / Termination4 Pin Male Connector
Supply Voltage Min-
Supply Voltage Max5VDC
Media TypeAir, Water
Output Interface1.127-3.6V
Sensor Output TypeRatiometric
Housing MaterialThermoplastic
Operating Temperature Min-10°C
Operating Temperature Max70°C
Product Range2066 Series
SVHCNo SVHC (15-Jun-2015)
Technical Specifications
Pressure Type
-
Pressure Port Type
G3/8 Male
Voltage Rating
5VDC
Port Style
Threaded
Supply Current
12mA
Supply Voltage Min
-
Media Type
Air, Water
Sensor Output Type
Ratiometric
Operating Temperature Min
-10°C
Product Range
2066 Series
Sensor Output Type
Analogue
Operating Pressure Min
0bar
Operating Pressure Max
4.5bar
Pressure Port Size
G3/8
Transducer Connection / Termination
4 Pin Male Connector
Supply Voltage Max
5VDC
Output Interface
1.127-3.6V
Housing Material
Thermoplastic
Operating Temperature Max
70°C
SVHC
No SVHC (15-Jun-2015)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Tunisia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Tunisia
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0206
