                      1. Home
                      2. Development Boards, Evaluation Tools
                      3. Application Specific & Reference Design Kits
                      Print Page

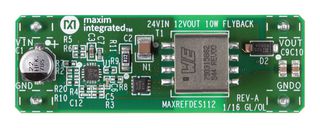

                      MAXREFDES112D#

                      Reference Design Board, Isolated 24V to 12V 10W Flyback Power Supply

                      ANALOG DEVICES MAXREFDES112D#
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerANALOG DEVICES
                      Manufacturer Part NoMAXREFDES112D#
                      Order Code2643461
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 12 week(s)

                      Notify me when back in stock

                      QuantityPrice
                      1+Rs.2,228.070
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      Rs.2,228.07
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerANALOG DEVICES
                      Manufacturer Part NoMAXREFDES112D#
                      Order Code2643461
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerAnalog Devices
                      Silicon Core NumberMAX17596
                      Kit Application TypePower Management
                      Application Sub TypeIsolated Flyback Power Supply
                      Core Architecture-
                      Core Sub-Architecture-
                      Silicon Family Name-
                      Kit ContentsRef Design Board MAX17596
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The MAXREFDES112D# is a compact, isolated 24V input, 12V output, 10W flyback power supply reference design. The reference design contains all the control circuitry and electric components required for designing 17V to 36V wide input, 12V and 10W output isolated flyback converter power supply. The design features MAX17596 peak current mode converter with flexible switching frequency. The MAX17596 is a peak current-mode controller for design of wide input voltage flyback and boost regulators. This entire circuit fits on a 20.3mm (0.8in) x 59.7mm (2.35in) board. In addition, through hole pins on the bottom side of the module allows quick and easy integration of this power converter into the main system. Pins are 0.6in from power to ground and 2in from the input side to the output side. It is typically used in PLCs, telecom and Datacom power supplies.

                      • Utilizes Halo TGSP-P145EP10LF transformer
                      • Functional insulation
                      • Compact and flexible
                      • Minimal external components
                      • Robust operation in adverse industrial environments
                      • 12V, 800mA with 20% over range current
                      • ±5% output accuracy
                      • Design is set to switch at 500KHz
                      • Delivers peak efficiency of 88%
                      • Start-up voltage and input overvoltage protection setting (EN/UVLO, OVI)

                      Applications

                      Industrial, Automation & Process Control

                      Notes

                      ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party

                      Technical Specifications

                      Silicon Manufacturer

                      Analog Devices

                      Kit Application Type

                      Power Management

                      Core Architecture

                      -

                      Silicon Family Name

                      -

                      Product Range

                      -

                      Silicon Core Number

                      MAX17596

                      Application Sub Type

                      Isolated Flyback Power Supply

                      Core Sub-Architecture

                      -

                      Kit Contents

                      Ref Design Board MAX17596

                      SVHC

                      No SVHC (21-Jan-2025)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      2 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Philippines
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85389000
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.25
