Name: Development Board, dsPIC33CK256MP506 Digital Power Plug-In Module (DP PIM)
Brand: MICROCHIP
SKU: 3130181
Availability: OutOfStock

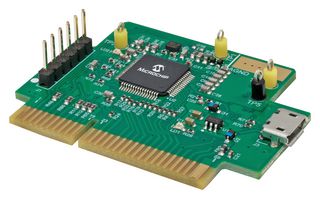

Development Board, dsPIC33CK256MP506 Digital Power Plug-In Module (DP PIM)

Image is for illustrative purposes only. Please refer to product description.

ManufacturerMICROCHIP

Manufacturer Part NoMA330048

Order Code3130181

See all Technical Docs

Available to Order

Manufacturer Standard Lead Time: 18 week(s)

Notify me when back in stock

Quantity	Price
1+	Rs.5,401.280

Price for:Each

Minimum: 1

Multiple: 1

Rs.5,401.28

Enter Your Part No/Line Note

Line Note

Added to your Order Confirmation, Invoice, and Dispatch note for this order only.

Your Part No

This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

Product Information

ManufacturerMICROCHIP

Manufacturer Part NoMA330048

Order Code3130181

Silicon ManufacturerMicrochip

Core ArchitecturedsPIC

Core Sub-ArchitecturedsPIC33

Silicon Core NumberdsPIC33CK256MP506

Silicon Family NamedsPIC33CK256MPxxx

For Use WithMicrochip Digital Power Dev Board (DM330029) and Low Voltage PFC Dev Board (DV330101)

Kit ContentsDigital Power Plug-In Module dsPIC33CK256MP506

Product Range-

SVHCNo SVHC (21-Jan-2025)

Product Overview

dsPIC33CK256MP506 digital power plug-in module (DP PIM) is a building block for Microchip’s digital power development boards that allows the controller to be easily swapped out for various dsPIC33 family members. The flexibility offered by these DP PIMs can also benefit customer’s development efforts if their prototyping boards incorporate this standardized DP PIM connector.

Microchip dsPIC33CK256MP506 16-Bit Digital Signal Controller
ICSP™ programming header
On-board LDO with power good (PG) function
Micro USB connector
MCP2221A USB to UART/I2C serial converter
Board edge connection interface for analogue inputs/outputs, PWM outputs and GPIO ports
