505110-2491
FFC / FPC Board Connector, 0.5 mm, 24 Contacts, Easy-On 505110 Series, Solder, Bottom, 1 Row

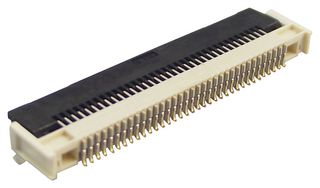

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No505110-2491Copy
Manufacturer Standard Lead Time16 weeks
Order Code3222039
Product RangeEasy-On 505110 Series
Also Known As5051102491, 505110-2491
Your Part Number
8,841 In Stock
Need more?
7,929 Delivery in 4-6 Business Days(UK stock)
912 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.110.100 |
| 100+ | Rs.93.900 |
| 500+ | Rs.88.700 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.1,101.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No505110-2491Copy
Manufacturer Standard Lead Time16 weeks
Order Code3222039
Product RangeEasy-On 505110 Series
Also Known As5051102491, 505110-2491
Technical Datasheet
Pitch Spacing0.5mm
No. of Contacts24Contacts
Product RangeEasy-On 505110 Series
Contact Termination TypeSolder
Contact PositionBottom
No. of Rows1 Row
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
Connector MountingSurface Mount
Connector OrientationRight Angle
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Pitch Spacing
0.5mm
Gender
Receptacle
Contact Termination Type
Solder
No. of Rows
1 Row
Contact Material
Phosphor Bronze
Connector Mounting
Surface Mount
SVHC
No SVHC (04-Feb-2026)
No. of Contacts
24Contacts
Product Range
Easy-On 505110 Series
Contact Position
Bottom
Contact Plating
Gold Plated Contacts
FFC / FPC Thickness
0.3mm
Connector Orientation
Right Angle
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000511
