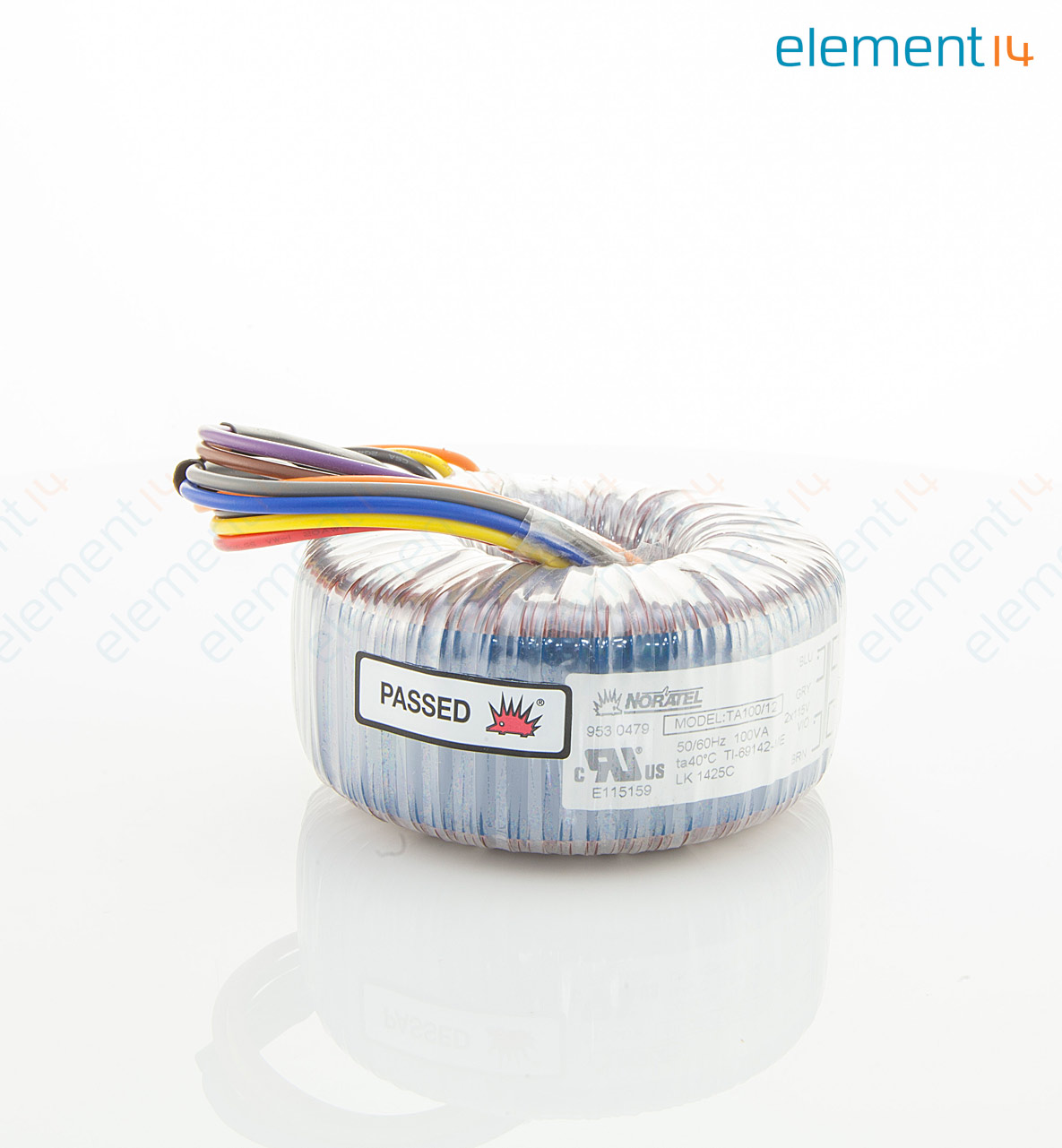

MULTICOMP PRO MCTA100/12Toroidal Transformer, 100 VA, 115V, 230V, 2 x 12V, Dual Primary, Dual Secondary, Unpotted
- Manufacturer:
- MULTICOMP PRO MULTICOMP PRO
- Manufacturer Part No:
- MCTA100/12
- Order Code:
- 9530479
-
- Technical Datasheet:
- MCTA100/12 Datasheet
- ECAD / MCAD
-
Product Information
Technical Documents (2)
Product Overview
The MCTA100/12 from Multicomp is a general purpose toroidal transformer with flying leads. It is designed and manufactured in accordance with EN61558-1 / EN61558-1/A1 /EN61558-2-4 or EN61558-2-6 UL recognised under family approval E115159 to UL1411, UL60601-1 and UL60065-1.
- Power rating is 100VA
- Secondary voltage is 2 x 12VAC
- Dual primary winding for connection in series or parallel only
- Secondary windings can be connected in series or parallel or used independently
- Double insulated primary lead-out
- Input voltage is 115 or 230V (±10%), 50/60Hz
- Typical efficiency is 90%
- Rated ambient temperature is 40°C
Applications
Industrial, Power Management
Contents
1x 70mm dished mounting plate, 2x 70mm neoprene mounting pads, 1x M6 x 50mm screw, nut and washer.
170 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier.
Extra stock is available upon order to the Supplier Lead Time which is approximately 13/5/24
170 UK stock available for 4-6 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
