R13-548A-05-BB
Pushbutton Switch, 12.1 mm, SPST, (On)-Off, Round Raised, Black

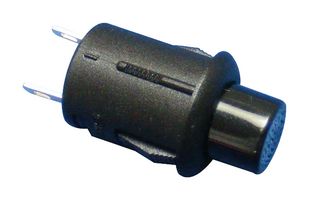

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | R13-548A-05-BBCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 1634679 |
| Your Part Number | |
| Technical Datasheet |
188 In Stock
Need more?
188 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.164.640 |
| 12+ | Rs.140.450 |
| 100+ | Rs.131.040 |
| 500+ | Rs.123.910 |
| 1000+ | Rs.119.450 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.164.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | R13-548A-05-BBCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 1634679 |
| Technical Datasheet | |
| Product Range | - |
| Panel Cutout Diameter | 12.1mm |
| Contact Configuration | SPST |
| Switch Operation | (On)-Off |
| Pushbutton Actuator Style | Round Raised |
| Actuator / Cap Colour | Black |
| Contact Current AC Max | 6A |
| Contact Voltage VAC | 125V |
| Contact Current DC Max | 6A |
| Contact Voltage VDC | 14V |
| IP Rating | - |
| Switch Mounting | Panel Mount |
| Switch Terminals | Solder Lug |
| Illumination Colour | Non Illuminated |
| Panel Cutout (H x W) | - |
| SVHC | To Be Advised |
Product Overview
The R13-548A-05-BB is a single-pole single-throw Pushbutton Switch with solder terminals, 2P DPST (On)-Off operation and momentary function.
- Two pin momentary action
- Current rating of 3A at 125V, 1.5A at 250VAC and 6A at 14VDC and 3A at 28VDC
- Insulation resistance of 100Mohm min at DC 500V
- Dielectric strength of 1000VAC
- Black actuator and black frame
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
| Product Range | - |
|---|---|
| Contact Configuration | SPST |
| Pushbutton Actuator Style | Round Raised |
| Contact Current AC Max | 6A |
| Contact Current DC Max | 6A |
| IP Rating | - |
| Switch Terminals | Solder Lug |
| Panel Cutout (H x W) | - |
| Panel Cutout Diameter | 12.1mm |
|---|---|
| Switch Operation | (On)-Off |
| Actuator / Cap Colour | Black |
| Contact Voltage VAC | 125V |
| Contact Voltage VDC | 14V |
| Switch Mounting | Panel Mount |
| Illumination Colour | Non Illuminated |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Indonesia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002161 |
