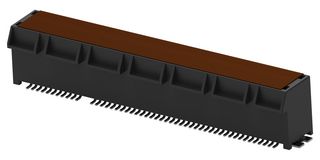

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 3-2337939-7Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3289666 |
| Your Part Number |
4,125 In Stock
Need more?
4,125 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.927.790 |
| 10+ | Rs.794.020 |
| 100+ | Rs.704.070 |
| 250+ | Rs.672.240 |
| 500+ | Rs.632.500 |
| 1000+ | Rs.625.050 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.927.79
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 3-2337939-7Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3289666 |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 98 Contacts |
| Connector Mounting | PCB Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- PCI express card edge connector
- Number of positions are 98
- Vertical PCB mount orientation, black colour
- Contact mating area plating material thickness (µin) is 3
- Maximum contact current rating is 1.1A, 1mm pitch
- Operating temperature range from -40 to 85°C
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 98 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| SVHC | No SVHC (04-Feb-2026) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | PCB Mount |
| Contact Termination Type | Surface Mount |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
