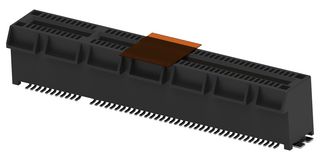

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 5-2337939-3Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3289662 |
| Product Range | PCI Express Connectors 2337939 Series |
| Your Part Number |
3,498 In Stock
Need more?
3,498 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.917.800 |
| 10+ | Rs.785.650 |
| 100+ | Rs.696.630 |
| 250+ | Rs.665.130 |
| 500+ | Rs.625.820 |
| 1000+ | Rs.617.860 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.917.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 5-2337939-3Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3289662 |
| Product Range | PCI Express Connectors 2337939 Series |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 98 Contacts |
| Connector Mounting | PCB Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Product Range | PCI Express Connectors 2337939 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- PCI express card edge connector
- Number of positions are 98, PCB thickness (accepted) is 1.57mm
- Vertical PCB mount orientation, black colour
- Copper alloy contact base, tin PCB contact termination area plating
- Gold contact mating area plating, nickel contact underplating
- Contact mating area plating material thickness (µin) is 30
- Maximum contact current rating is 1.1A, 1mm pitch
- Operating temperature range from -40 to 85°C
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 98 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| SVHC | No SVHC (04-Feb-2026) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | PCB Mount |
| Contact Termination Type | Surface Mount |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Product Range | PCI Express Connectors 2337939 Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
