ADE0704

DIP / SIP Switch, 7 Circuits, Slide, Through Hole, SPST, 24 VDC, 100 mA

TE CONNECTIVITY ADE0704
×

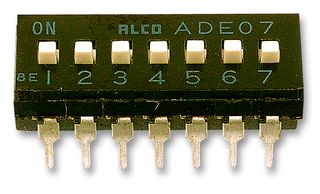

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
ADE0704
Order Code:
1123940
Product Range
AD Series
Also Known As:
1825057-6
Technical Datasheet:
ADE0704   Datasheet
See all Technical Docs

Product Range Selector (AD Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
7Circuits

:
Slide

:
Through Hole

:
SPST

:
24VDC

:
100mA

:
AD Series

:
DIP Unsealed

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (4)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The ADE0704 is a 7-pole through-hole mount DIP Switch with SPST contact configuration and unsealed. It features black PPS base and cover, white PA6T actuator, copper alloy-gold flash over nickel fixed contact/terminal and copper alloy gold-plate flash nickel moving contact.
  • 50mR Initial maximum contact resistance
  • 1000MR Insulation resistance at 100VDC
  • 1000 Cycles life expectancy
  • 280000psi Contact pressure
  • -30 to 85°C Operating temperature

Applications

Industrial

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Also Known As

1825057-6

1,029 In stock Need more?

1,029 UK stock for 4-6 days delivery

Rs.162.19

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.162.19
