CSD17308Q3
Power MOSFET, N Channel, 30 V, 47 A, 0.0094 ohm, SON, Surface Mount

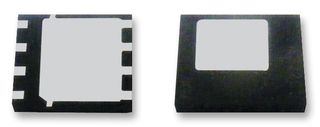

Image is for illustrative purposes only. Please refer to product description.
301 In Stock
Need more?
301 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.94.080 |
| 10+ | Rs.63.110 |
| 100+ | Rs.43.790 |
| 500+ | Rs.37.360 |
| 1000+ | Rs.30.050 |
| 5000+ | Rs.28.820 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
Rs.94.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part NoCSD17308Q3
Order Code3125023
Channel TypeN Channel
Drain Source Voltage Vds30V
Continuous Drain Current Id47A
Drain Source On State Resistance0.0094ohm
Transistor Case StyleSON
Transistor MountingSurface Mount
Rds(on) Test Voltage4.5V
Gate Source Threshold Voltage Max1.3V
Power Dissipation2.7W
No. of Pins8Pins
Operating Temperature Max150°C
Product Range-
Qualification-
MSL-
SVHCNo SVHC (27-Jun-2018)
Product Overview
The CSD17308Q3 is a 30V N-channel NexFET™ Power MOSFET with low thermal resistance and optimized for 5V gate drive. It is been designed to minimize losses in power conversion and optimized for control or synchronous FET applications. Suitable for point of load synchronous buck converter for applications in networking, telecom and computing systems.
- Ultra low Qg and Qgd
- Avalanche rated
- Halogen-free
- Optimized for 5V gate drive
Applications
Power Management, Motor Drive & Control, Computers & Computer Peripherals, Industrial
Technical Specifications
Channel Type
N Channel
Continuous Drain Current Id
47A
Transistor Case Style
SON
Rds(on) Test Voltage
4.5V
Power Dissipation
2.7W
Operating Temperature Max
150°C
Qualification
-
SVHC
No SVHC (27-Jun-2018)
Drain Source Voltage Vds
30V
Drain Source On State Resistance
0.0094ohm
Transistor Mounting
Surface Mount
Gate Source Threshold Voltage Max
1.3V
No. of Pins
8Pins
Product Range
-
MSL
-
