TPD4E02B04DQAR
ESD Protection Device, 8.8 V, USON, 10 Pins, 3.6 V, TPD4E

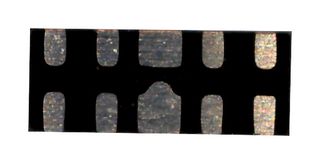

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TEXAS INSTRUMENTS |
|---|---|
| Manufacturer Part No | TPD4E02B04DQARCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | Re-Reel3116510RL Cut Tape3116510 |
| Product Range | TPD4E |
| Your Part Number |
4,435 In Stock
33,000 more incoming. You can reserve stock now
4,435 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | Rs.105.350 | Rs.105.35 |
| Total Price | Rs.105.35 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | Rs.105.350 |
| 10+ | Rs.50.100 |
| 100+ | Rs.42.790 |
| 500+ | Rs.33.050 |
| 1000+ | Rs.25.840 |
| 5000+ | Rs.24.860 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TEXAS INSTRUMENTS |
|---|---|
| Manufacturer Part No | TPD4E02B04DQARCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | Re-Reel3116510RL Cut Tape3116510 |
| Product Range | TPD4E |
| Clamping Voltage Vc Max | 8.8V |
| Diode Case Style | USON |
| No. of Pins | 10Pins |
| Operating Voltage | 3.6V |
| Power Dissipation Pd | - |
| Product Range | TPD4E |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (27-Jun-2018) |
Product Overview
The TPD4E02B04 is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
- IEC 61000-4-2 Level 4 ESD protection
- IEC 61000-4-4 EFT protection
- IEC 61000-4-5 Surge protection
- DC breakdown voltage: 5.5V (Minimum)
- Ultra low leakage current: 10nA
- Low ESD clamping voltage: 8.8V at 5A TLP
- Supports high speed interfaces up to 10Gbps
- Industrial temperature range: –40°C to +125°C
- Easy Flow Through routing package
Technical Specifications
| Clamping Voltage Vc Max | 8.8V |
|---|---|
| No. of Pins | 10Pins |
| Power Dissipation Pd | - |
| Automotive Qualification Standard | - |
| Diode Case Style | USON |
|---|---|
| Operating Voltage | 3.6V |
| Product Range | TPD4E |
| SVHC | No SVHC (27-Jun-2018) |
