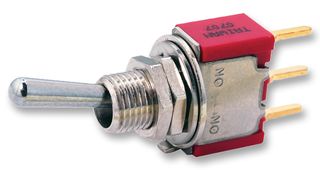

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY - ALCOSWITCH |
|---|---|
| Manufacturer Part No | A101SYCQ04Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2292959 |
| Product Range | Gemini A Series |
| Also Known As | 4-1825136-5 |
| Your Part Number | |
| Technical Datasheet |
1,105 In Stock
Need more?
1,105 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.433.320 |
| 5+ | Rs.421.540 |
| 10+ | Rs.409.760 |
| 20+ | Rs.399.580 |
| 50+ | Rs.371.190 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.433.32
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - ALCOSWITCH |
|---|---|
| Manufacturer Part No | A101SYCQ04Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2292959 |
| Product Range | Gemini A Series |
| Also Known As | 4-1825136-5 |
| Technical Datasheet | |
| Switch Operation | On-Off |
| Contact Configuration | SPDT |
| Illumination | Non Illuminated |
| Product Range | Gemini A Series |
| Switch Mounting | Through Hole |
| Contact Current Max | 5A |
| Contact Voltage AC Nom | 120V |
| Switch Terminals | Solder |
| Contact Voltage DC Nom | 28V |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The 4-1825136-5 is a SPDT panel-mount non-illuminated sealed Toggle Switch with ON-ON switch function and through-hole switch terminals. The A101SYCQ04 has phenolic actuator, brass with chrome finish lever, brass with nickel finish bushing and epoxy terminal seal.
- Epoxy sealed terminals
- 6000 Cycles electrical life
- 1000MΩ Insulation resistance
- 10mΩ Maximum contact resistance
- Silver-plated contacts
- Stainless steel frame with brass tin plated solder support
- Printed circuit termination
Applications
Industrial, Medical, Sensing & Instrumentation, Lighting, Audio
Technical Specifications
| Switch Operation | On-Off |
|---|---|
| Illumination | Non Illuminated |
| Switch Mounting | Through Hole |
| Contact Voltage AC Nom | 120V |
| Contact Voltage DC Nom | 28V |
| Contact Configuration | SPDT |
|---|---|
| Product Range | Gemini A Series |
| Contact Current Max | 5A |
| Switch Terminals | Solder |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (3)
Alternatives for A101SYCQ04
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005461 |
