1-776163-1

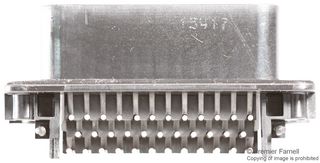

Rectangular Power Connector, 35 Contacts, AMPSEAL, PCB Mount, Through Hole, 4 mm, Header
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1-776163-1Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2254629 |
| Product Range | AMPSEAL |
| Your Part Number | |
| Technical Datasheet |
70 In Stock
64 more incoming. You can reserve stock now
70 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,197.180 |
| 10+ | Rs.2,045.350 |
| 25+ | Rs.1,893.510 |
| 100+ | Rs.1,741.670 |
| 250+ | Rs.1,691.960 |
| 500+ | Rs.1,642.240 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,197.18
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1-776163-1Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2254629 |
| Product Range | AMPSEAL |
| Technical Datasheet | |
| No. of Contacts | 35Contacts |
| Product Range | AMPSEAL |
| Connector Mounting | PCB Mount |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 4mm |
| Gender | Header |
| Contact Gender | Pin |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Shell Size | - |
| No. of Rows | 3Rows |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 1-776163-1 is a 35-position 3-row horizontal Rectangular Header with tin-plated brass contacts and white glass filled PBT housing. The AMPSEAL series sealed connector supports through-hole solder termination method and boardlocks PCB mount retention type. It is suitable for power, signal circuit application.
- With PCB mount retention
- IP6K9K Protection rating
- Rugged
Applications
Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| No. of Contacts | 35Contacts |
|---|---|
| Connector Mounting | PCB Mount |
| Pitch Spacing | 4mm |
| Contact Gender | Pin |
| Contact Plating | Gold Plated Contacts |
| No. of Rows | 3Rows |
| Product Range | AMPSEAL |
|---|---|
| Contact Termination Type | Through Hole |
| Gender | Header |
| Contact Material | Brass |
| Connector Shell Size | - |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (3)
Alternatives for 1-776163-1
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .039992 |
