| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1-794612-1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2468628 |
| Product Range | Micro MATE-N-LOK |
| Your Part Number | |
| Technical Datasheet |
8,685 In Stock
6,100 more incoming. You can reserve stock now
8,685 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | Rs.12.960 |
| 500+ | Rs.11.600 |
| 1000+ | Rs.11.090 |
| 2500+ | Rs.10.570 |
| 5000+ | Rs.10.090 |
| 10000+ | Rs.9.890 |
Price for:Each
Minimum: 100
Multiple: 100
Rs.1,296.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1-794612-1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2468628 |
| Product Range | Micro MATE-N-LOK |
| Technical Datasheet | |
| Product Range | Micro MATE-N-LOK |
| Contact Gender | Pin |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 20AWG |
| Contact Plating | Gold Plated Contacts |
| For Use With | AMP Micro MATE-N-LOK Series Housings |
| Wire Size AWG Min | 24AWG |
| Contact Material | Brass |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

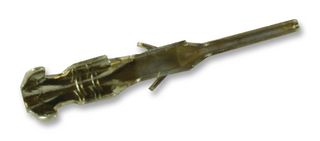

The 1-794612-1 is a Pin Contact made of brass with gold plated finish. It accepts 24 to 20AWG wire size. The crimp contact is suitable for Micro MATE-N-LOK series housing.
- Contact retention
- 250VAC/DC Operating voltage
- 5A Contact current rating
Applications
Consumer Electronics, Instrumentation, Industrial, Security, LED Lighting
Technical Specifications
| Product Range | Micro MATE-N-LOK |
|---|---|
| Contact Termination Type | Crimp |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Min | 24AWG |
| SVHC | No SVHC (04-Feb-2026) |
| Contact Gender | Pin |
|---|---|
| Wire Size AWG Max | 20AWG |
| For Use With | AMP Micro MATE-N-LOK Series Housings |
| Contact Material | Brass |
Alternatives for 1-794612-1
3 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000066 |
