1586317-1

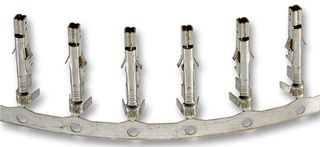

Contact, VAL-U-LOK, Socket, Crimp, 22 AWG, Tin Plated Contacts, VAL-U-LOK Series Connector System
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1586317-1Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 8116083 |
| Product Range | VAL-U-LOK |
| Your Part Number | |
| Technical Datasheet |
88,636 In Stock
Need more?
88,636 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | Rs.6.460 |
| 1000+ | Rs.5.520 |
| 2500+ | Rs.5.190 |
| 5000+ | Rs.5.090 |
| 10000+ | Rs.4.990 |
| 20000+ | Rs.4.880 |
Price for:Each
Minimum: 100
Multiple: 100
Rs.646.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1586317-1Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 8116083 |
| Product Range | VAL-U-LOK |
| Technical Datasheet | |
| Product Range | VAL-U-LOK |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 22AWG |
| Contact Plating | Tin Plated Contacts |
| For Use With | VAL-U-LOK Series Connector System |
| Wire Size AWG Min | 26AWG |
| Contact Material | Brass |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 1586317-1 is a 26 to 22AWG Socket Crimp Contact made of brass base material with pre-tin-plating on contact mating area, termination area and contact crimp area. It is used for wire-to-board and wire-to-wire VAL-U-LOK connector system.
- 600VAC Operating voltage
- 9A Current rating
- UL 94V-0/2 Flammability
- -40 to 105°C Operating temperature range
Applications
Consumer Electronics, Portable Devices, HVAC, Lighting, Industrial, Security, Communications & Networking
Technical Specifications
| Product Range | VAL-U-LOK |
|---|---|
| Contact Termination Type | Crimp |
| Contact Plating | Tin Plated Contacts |
| Wire Size AWG Min | 26AWG |
| SVHC | No SVHC (04-Feb-2026) |
| Contact Gender | Socket |
|---|---|
| Wire Size AWG Max | 22AWG |
| For Use With | VAL-U-LOK Series Connector System |
| Contact Material | Brass |
Alternatives for 1586317-1
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000132 |
