| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658537-2Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3791985 |
| Product Range | AMPLIMITE HDP-20 |
| Your Part Number | |
| Technical Datasheet |
13,069 In Stock
Need more?
13,069 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.24.260 |
| 100+ | Rs.20.760 |
| 500+ | Rs.18.620 |
| 1000+ | Rs.17.770 |
| 2500+ | Rs.17.140 |
| 5000+ | Rs.16.510 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.242.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658537-2Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3791985 |
| Product Range | AMPLIMITE HDP-20 |
| Technical Datasheet | |
| For Use With | AMPLIMITE HDP-20 Series CPC Connectors |
| Contact Gender | Socket |
| D Sub Contact Type | Socket (Female) |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 24AWG |
| Contact Termination Type | Crimp |
| Product Range | AMPLIMITE HDP-20 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

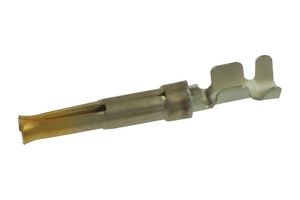

The TE Connectivity AMP 1658537-2 is a high-quality Size 20 socket contact designed for use with AMPLIMITE HDP-20 and compatible connector systems. Manufactured from phosphor bronze with a gold flash mating surface, this crimp termination contact provides reliable electrical performance and long-term durability in commercial and industrial interconnect applications. Suitable for 24AWG to 20AWG wires, the contact features a snap-in retention design for secure installation and dependable connectivity.
- Suitable for commercial, industrial and communications interconnect applications
- Socket contact for AMPLIMITE HDP-20 and compatible connector series
- Accepts 24AWG to 20AWG (0.2mm² to 0.6mm²) wire sizes
- Crimp termination for secure and reliable wire attachment
- Gold flash contact plating enhances conductivity and corrosion resistance
- Manufactured from durable phosphor bronze contact material
- Size 20 contact with snap-in retention for easy assembly
- Genuine TE Connectivity AMPLIMITE component for dependable performance
Technical Specifications
| For Use With | AMPLIMITE HDP-20 Series CPC Connectors |
|---|---|
| D Sub Contact Type | Socket (Female) |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Min | 24AWG |
| Product Range | AMPLIMITE HDP-20 |
| Contact Gender | Socket |
|---|---|
| Contact Material | Phosphor Bronze |
| Wire Size AWG Max | 20AWG |
| Contact Termination Type | Crimp |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (4)
Alternatives for 1658537-2
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0001 |
