1658678-1
D Sub Connector Housing, 15 Ways, High Density D Sub, 1, AMPLIMITE HDP-22, Plug, Metal Body
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658678-1Copy |
| Order Code | 1653966 |
| Product Range | AMPLIMITE HDP-22 |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658678-1Copy |
| Order Code | 1653966 |
| Product Range | AMPLIMITE HDP-22 |
| Technical Datasheet | |
| No. of Positions | 15Ways |
| Connector Type | High Density D Sub |
| Connector Shell Size | 1 |
| Product Range | AMPLIMITE HDP-22 |
| Gender | Plug(View Associated Connectors) |
| Connector Body Material | Metal Body |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview

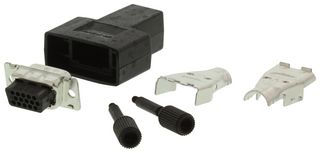

The 1658678-1 is a 15-position D-sub Connector Plug Kit with a tin plated steel shell and black thermoplastic insert (UL94V-0). The high density D-sub housing kit comes with a tin plated steel shield, zinc alloy jackscrews and black PVC housing. It is suitable for use with the AMPLIMITE HDP-22 series crimp snap-in contact connectors.
- UL94V-0 Flammability rating
Applications
Industrial, Computers & Computer Peripherals
Contents
Connector, Inner shield, Outer shield, Enclosure and 2 Jackscrews.
Technical Specifications
| No. of Positions | 15Ways |
|---|---|
| Connector Shell Size | 1 |
| Gender | Plug |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| Connector Type | High Density D Sub |
|---|---|
| Product Range | AMPLIMITE HDP-22 |
| Connector Body Material | Metal Body |
| SVHC | No SVHC (23-Jan-2024) |
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .028 |
