1658685-1
D Sub Connector Housing, 78 Ways, High Density D Sub, 5, AMPLIMITE HDP-22, Receptacle, Metal Body

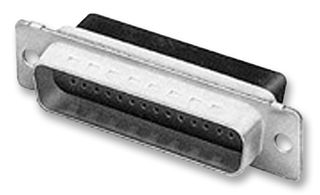

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658685-1Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1653971 |
| Product Range | AMPLIMITE HDP-22 |
| Your Part Number | |
| Technical Datasheet |
397 In Stock
1,155 more incoming. You can reserve stock now
397 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,783.580 |
| 10+ | Rs.1,526.140 |
| 25+ | Rs.1,434.680 |
| 100+ | Rs.1,369.370 |
| 250+ | Rs.1,238.270 |
| 500+ | Rs.1,182.400 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,783.58
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658685-1Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1653971 |
| Product Range | AMPLIMITE HDP-22 |
| Technical Datasheet | |
| No. of Positions | 78Ways |
| Connector Type | High Density D Sub |
| Connector Shell Size | 5 |
| Product Range | AMPLIMITE HDP-22 |
| Gender | Receptacle(View Associated Connectors) |
| Connector Body Material | Metal Body |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 1658685-1 is a 78-position shielded Snap-In Crimp Connector with tin-plated copper contact and steel body. The Amplimite HDP-22 series connector shell is made of tin-plated steel and has 5 shell size. The receptacle has thermoplastic insert and black GF nylon housing.
- 22 Contact size
- High performance, precision formed crimp contacts
Applications
Commercial, Aerospace, Defence, Military
Technical Specifications
| No. of Positions | 78Ways |
|---|---|
| Connector Shell Size | 5 |
| Gender | Receptacle |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| Connector Type | High Density D Sub |
|---|---|
| Product Range | AMPLIMITE HDP-22 |
| Connector Body Material | Metal Body |
| SVHC | No SVHC (04-Feb-2026) |
Alternatives for 1658685-1
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014515 |
