| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 166293-1Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 1187809 |
| Product Range | AMPLIMITE HDP-20 |
| Your Part Number | |
| Technical Datasheet |
11,350 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 10+ | Rs.45.950 |
| 100+ | Rs.39.130 |
| 500+ | Rs.35.020 |
| 1000+ | Rs.33.400 |
| 2500+ | Rs.32.190 |
| 5000+ | Rs.30.970 |

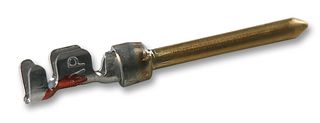

Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 166293-1Copy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 1187809 |
| Product Range | AMPLIMITE HDP-20 |
| Technical Datasheet | |
| For Use With | D Sub Connectors |
| D Sub Contact Type | Pin (Male) |
| Contact Gender | Pin |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 24AWG |
| Contact Termination Type | Crimp |
| Product Range | AMPLIMITE HDP-20 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The AMPLIMITE HDP-20 series high-density Connector with crimp-type contacts. The connector is designed for rear insertion and extraction of size 20, precision formed contacts. This connector features steel shells and black polymer inserts with plastic contact retention tines. It comes in a variety of sizes for production needs and is adaptable to a variety of mounting and hardware requirements. Using a keystone mating face configuration, this connector incorporates multiple polarization and mating alignment features, allowing flexibility in system design. The plug connector has an integral hood which protects the inserted pin contacts. The cavity rows are number-coded for convenience. This connector accepts a contact with a wire size range of 28 to 18AWG.
- Pin (male) contact for AMPLIMITE HDP-20 and compatible D-Sub connector systems
- Accepts 24AWG to 20AWG (0.2mm² to 0.56mm²) wire sizes
- Crimp termination provides a secure and reliable wire connection
- Gold-plated contact interface enhances conductivity and corrosion resistance
- Size 20 contact with snap-in retention for easy and secure assembly
- Designed for signal transmission applications requiring dependable electrical performance
- Features insulation support to improve wire termination reliability
Applications
Industrial, Aerospace, Defence, Military, Commercial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| For Use With | D Sub Connectors |
|---|---|
| Contact Gender | Pin |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Min | 24AWG |
| Product Range | AMPLIMITE HDP-20 |
| D Sub Contact Type | Pin (Male) |
|---|---|
| Contact Material | Brass |
| Wire Size AWG Max | 20AWG |
| Contact Termination Type | Crimp |
| SVHC | No SVHC (04-Feb-2026) |
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000091 |
