173724-1
Contact, Socket, Crimp, Positive Lock EX Series Connectors, 14 AWG, 20 AWG

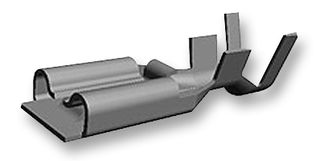

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No173724-1
Order Code2308817
Your Part Number
Technical Datasheet
1,528 In Stock
Need more?
1528 Delivery in 4-6 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price |
|---|---|
| 100+ | Rs.9.420 |
| 500+ | Rs.8.440 |
| 1000+ | Rs.8.040 |
| 2500+ | Rs.7.560 |
| 5000+ | Rs.7.410 |
| 10000+ | Rs.7.260 |
Price for:Each
Minimum: 100
Multiple: 100
Rs.942.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No173724-1
Order Code2308817
Technical Datasheet
Product Range-
Contact GenderSocket
Contact Termination TypeCrimp
For Use WithPositive Lock EX Series Connectors
Wire Size AWG Max14AWG
Wire Size AWG Min20AWG
Current Rating-
Contact MaterialBrass
Contact PlatingTin Plated Contacts
SVHCTo Be Advised
Product Overview
The 173724-1 is a Crimp Contact made of brass with pre-tin plated finish. It accepts 20 to 14AWG wire and suitable for Positive Lock EX series connectors.
- -40 to 105°C Operating temperature
Applications
Industrial
Technical Specifications
Product Range
-
Contact Termination Type
Crimp
Wire Size AWG Max
14AWG
Current Rating
-
Contact Plating
Tin Plated Contacts
Contact Gender
Socket
For Use With
Positive Lock EX Series Connectors
Wire Size AWG Min
20AWG
Contact Material
Brass
SVHC
To Be Advised
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000553
