5747841-4

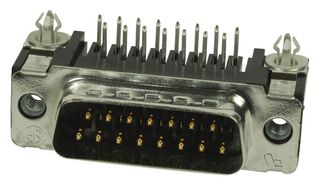

D Sub Connector, DB15, Standard, Plug, AMPLIMITE HD-20 Series, 15 Contacts, DA, Solder

AMP - TE CONNECTIVITY 5747841-4

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
5747841-4
Order Code:
2526605
Product Range
AMPLIMITE HD-20 Series

Product Range Selector (AMPLIMITE HD-20 Series)

See all from this product range

Product Overview

The 5747841-4 is a 15-way 2-row front metal shell D-sub Plug with gold-plated brass contacts and clear chromate-plated zinc 4-40 UNC threaded inserts. The Amplimite HD-20 series right angle posted plug comes with grounding indents, grounding straps, black nylon/polyester housing, tin-plated brass eyelet, tin-plated carbon steel shell and tin-plated solder tail. Plugs are preloaded with size 20 DF posted pin contacts. Connectors are intermateable with any size 20 subminiature D connectors dimensionally complying with MIL-C-24308. The front metal-shell design is compatible with full metal-shell connectors.
  • UL94V-0 Flammability rating
  • Right angle through hole PCB mounting
  • Copper alloy boardlock

Applications

Industrial, Computers & Computer Peripherals

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Standard

:
Plug (View Associated Connectors)

:
AMPLIMITE HD-20 Series

:
15Contacts

:
DA

:
Solder

:
Through Hole Mount Right Angle

:
Brass

:
Gold over Palladium Nickel, Gold

:
Carbon Steel Body

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (4)

326 In stock Need more?

136 available for 3 - 5 business days delivery
190 available for 4 - 6 business days delivery

Rs.277.18

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.277.18
