5747847-6

D Sub Connector, DB37, Standard, Receptacle, AMPLIMITE HD-20 Series, 37 Contacts, DC, Solder

AMP - TE CONNECTIVITY 5747847-6
×

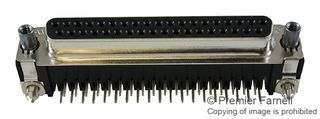

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
5747847-6
Order Code:
2526613
Product Range
AMPLIMITE HD-20 Series

Product Range Selector (AMPLIMITE HD-20 Series)

See all from this product range

Product Overview

The 5747847-6 is a 37-position 2-row right angle D-sub Receptacle with gold-plated phosphor bronze contacts, UL94V-0-rated black thermoplastic housing and zinc-plated fixed female screw locks. The HD-20 series right-angle posted connector has tin-plated steel shell, tin-plated brass eyelets, tin-plated copper alloy boardlocks and grounding straps.
  • Preloaded
  • Through-hole PCB mounting style
  • Mounting holes PCB mount retention
  • UL94V-0 Flammability rating

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Standard

:
Receptacle (View Associated Connectors)

:
AMPLIMITE HD-20 Series

:
37Contacts

:
DC

:
Solder

:
Through Hole Mount Right Angle

:
Phosphor Bronze

:
Gold Plated Contacts

:
Carbon Steel Body

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (5)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

493 In stock Need more?

493 US stock for 5-7 days delivery

Rs.735.91

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.735.91
Promotional price
Contract Price
Web only price
Web only contract price

25+ Rs.666.39
