D Sub Connector Housing, 15 Ways, High Density D Sub, 1, AMPLIMITE HDP-22, Receptacle, Metal Body

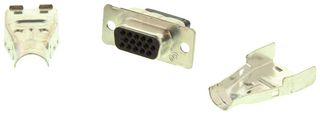

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 5748634-1Copy |
| Order Code | 1556918 |
| Product Range | AMPLIMITE HDP-22 |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 5748634-1Copy |
| Order Code | 1556918 |
| Product Range | AMPLIMITE HDP-22 |
| Technical Datasheet | |
| No. of Positions | 15Ways |
| Connector Type | High Density D Sub |
| Connector Shell Size | 1 |
| Product Range | AMPLIMITE HDP-22 |
| Gender | Receptacle(View Associated Connectors) |
| Connector Body Material | Metal Body |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| SVHC | No SVHC (17-Jan-2022) |
Product Overview
The AMPLIMITE HDP-22 series Plugs and Receptacles feature tin-plated steel shells and black nylon inserts with plastic contact retention tines. Plug housings also feature grounding indents. Housings are designed for rear insertion and extraction of precision--formed, crimp-type size-22 contacts - pin contacts for plug housings and socket contacts for receptacles. End cavities at each contact row are number coded (FRONT and BACK) to aid in contact location.
Applications
Industrial
Technical Specifications
| No. of Positions | 15Ways |
|---|---|
| Connector Shell Size | 1 |
| Gender | Receptacle |
| For Use With | AMPLIMITE HDP-22 Series Crimp Snap-In Contacts |
| Connector Type | High Density D Sub |
|---|---|
| Product Range | AMPLIMITE HDP-22 |
| Connector Body Material | Metal Body |
| SVHC | No SVHC (17-Jan-2022) |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .011113 |
