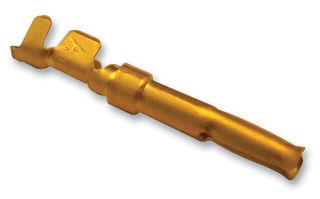

66504-4
D Sub Contact, D Sub Connectors, Socket (Female), Phosphor Bronze, Gold Plated Contacts, 20 AWG

| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 66504-4Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1772763 |
| Product Range | HDP-20 |
| Your Part Number | |
| Technical Datasheet |
10,000 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 10+ | Rs.22.920 |
| 100+ | Rs.19.580 |
| 500+ | Rs.17.550 |
| 1000+ | Rs.16.750 |
| 2500+ | Rs.15.750 |
| 5000+ | Rs.15.440 |
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 66504-4Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1772763 |
| Product Range | HDP-20 |
| Technical Datasheet | |
| For Use With | D Sub Connectors |
| D Sub Contact Type | Socket (Female) |
| Contact Gender | Socket |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 24AWG |
| Contact Termination Type | Crimp |
| Product Range | HDP-20 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The HDP-20 series high-density Connector with crimp-type contacts. The connector is designed for rear insertion and extraction of size 20, precision formed contacts. This connector features steel shells and black polymer inserts with plastic contact retention tines. It comes in a variety of sizes for production needs and is adaptable to a variety of mounting and hardware requirements. Using a keystone mating face configuration, this connector incorporates multiple polarization and mating alignment features, allowing flexibility in system design. The plug connector has an integral hood which protects the inserted pin contacts. The cavity rows are number-coded for convenience. This connector accepts a contact with a wire size range of 28 to 18AWG.
Applications
Industrial, Aerospace, Defence, Military, Commercial
Technical Specifications
| For Use With | D Sub Connectors |
|---|---|
| Contact Gender | Socket |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Min | 24AWG |
| Product Range | HDP-20 |
| D Sub Contact Type | Socket (Female) |
|---|---|
| Contact Material | Phosphor Bronze |
| Wire Size AWG Max | 20AWG |
| Contact Termination Type | Crimp |
| SVHC | No SVHC (04-Feb-2026) |
Alternatives for 66504-4
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000228 |
