132193

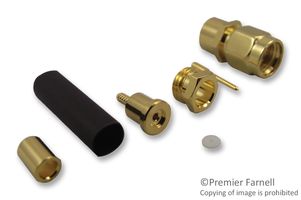

The 132193 is a RF Connector, SMA series, SMA straight crimp plug with gold-plated brass contacts and solder contact termination. Body made up of brass with gold-plated finish and PTFE insulator. Using a threaded interface, SMA 50ohm connector is semi-precision units that provide excellent electrical performance and outstanding mechanical durability. SMA connector offers high performance in a compact design. SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Designed to accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer. Suitable for M17/93-RG178, RG-178, RG-178A, RG-178B and RG-196 cable.

• Lightweight, compact and vibration-proof design
• Threaded coupling mechanism
• Standard polarity
• Standard thread direction
• 5000MΩ Insulation resistance
• 100 Mating cycles

Applications

RF Communications, Communications & Networking, Sensing & Instrumentation, Computers & Computer Peripherals, Test & Measurement
