| Manufacturer | AMS OSRAM GROUP |
|---|---|
| Manufacturer Part No | TCS3720_EVM_KTCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4539962 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.23,136.430 |
Product Information
| Manufacturer | AMS OSRAM GROUP |
|---|---|
| Manufacturer Part No | TCS3720_EVM_KTCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4539962 |
| Technical Datasheet | |
| Board Type | Evaluation Kit |
| IC / Module Used | TCS3720 |
| Application Sub Type | Ambient Light, Color (RGB), Proximity Sensor |
| Kit Contents | Evaluation Board TCS3720, EVM Controller Board, USB Cable, Flash Drive |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

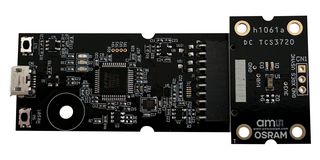

TCS3720_EVM_KT is an ALS/colour and proximity sensor for behind OLED applications. The TCS3720 features ambient light, colour (RGB) sensing and proximity detection. The device integrates two advanced emitter drivers within a compact 3.34mm × 1.36mm × 0.6mm OLGA package. The hardware consists of the EVM controller, the TCS3720 EVM daughter card, and a USB interface cable. The EVM controller board provides power and I2C communication to the daughter card through a seven-pin connector. When the EVM controller is connected to the PC through USB, a green LED lights to indicate the system is receiving power. The LED will be turned off when the GUI program is started.
- Device integrates 2 advanced emitter drivers within compact 3.34 x 1.36 x 0.6mm OLGA package
Contents
TCS3720 daughter card, EVM controller board, USB cable (A to Micro-B), Flash drive.
Technical Specifications
| Board Type | Evaluation Kit |
|---|---|
| Application Sub Type | Ambient Light, Color (RGB), Proximity Sensor |
| SVHC | No SVHC (21-Jan-2025) |
| IC / Module Used | TCS3720 |
|---|---|
| Kit Contents | Evaluation Board TCS3720, EVM Controller Board, USB Cable, Flash Drive |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Austria Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
