DS9120+

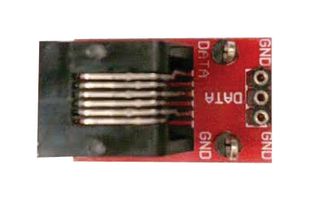

Evaluation Board, DS9120 RJ11 to Socket Board, 1-Wire Devices
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DS9120+Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2763342 |
| Product Range | DS9120 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.1,752.170 |
| 5+ | Rs.1,717.130 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DS9120+Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2763342 |
| Product Range | DS9120 Series |
| Technical Datasheet | |
| Accessory Type | TO-92 Socket Board with RJ11 Connector |
| For Use With | Evaluating 1-Wire Devices |
| Product Range | DS9120 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The DS9120+ is a TO-92 socket board for evaluating 1-wire devices. It provides the hardware connectivity necessary to evaluate and operate 1-Wire® products in an easy-to use PC environment. Additionally, the socket board can be readily used with the DS9481R USB to 1 wire adapter to create a 1-Wire® PC programmer for 1-Wire® EEPROM and one-time programmable (OTP)/EPROM devices.
- Fully compliant with DS9481R USB to 1-wire adapter
- Convenient on-board test points
- Jumper disconnect/connect functionality
- Meets RJ11 1-wire interface standard
- Include connections for various OTP EPROM programming
Applications
Embedded Design & Development
Contents
Wire socket board Analog Devices DS9120+, RJ11 cable assembly IO interconnect, Instruction sheet.
